| FULLY ADHERED UNINSULATED STANDING SEAM ROOF SYSTEM

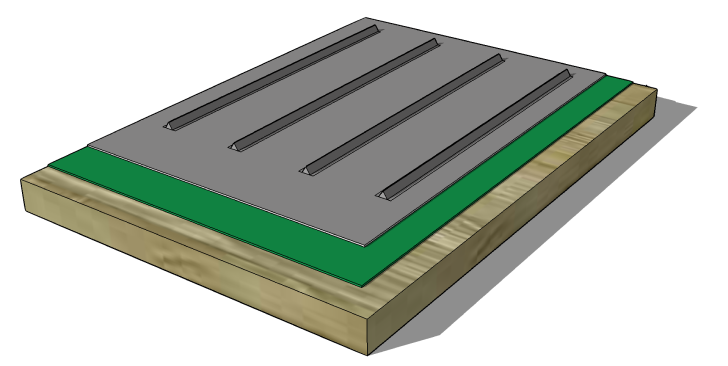

SYSTEM | OVERVIEW

The Fatra standing seam replicate system is perfect for modern day architecture and provides unrivalled aesthetics for bespoke projects which creates the look of a metal roof but with the performance of Fatra PVC membrane system.

The membrane implemented on a standing seam replicate system is either the 807 or 807v depending on the substrate which provides a fully adhered membrane system. The standing seam replicates are then hot air fusion welded to the field sheet membrane at identical centres to achieve the look of a traditional metal deck roof. The standing seam replicates come in lengths of 3m to reduce the amount of setting out required.

The Fatra standing seam replicate system is the perfect solution for almost any roof where aesthetics and performance are the number one priority. Unlike traditional metal deck roofs, the Fatra standing seam replicate system comes with an array of accessories to create a fully homogenous system that does not require onsite fabrication or is reliant on silicone seals along the joints and laps. The Fatra standing seam system is fully hot air fusion welded creating a permanent waterproofing system with a life expectancy in excess of 30 years.

STANDING SEAM REPLICATE | PVC Standing Seam Profiles

Fatra PVC standing seam replicates are hot air fusion welded to the membrane to provide the aesthetics of a metal roof but superior performance capabilities of a Fatra PVC Membrane system.

FATRAFOL 807v | Fleece Back PVC Waterproofing Sheet Membrane

The Fatrafol 807v has a 120gsm fleece backing which enables the PVC membrane to be fully adhered directly to the substrate without any primers or extensive preparation.

FATRABOND 1215 | Moisture Curing Polyurethane Adhesive

The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807v PVC membrane directly to the substrate. The Fatrabond 1215 adhesive is unaffected by substrate moisture and inclement weather improving installation programme and productivity.

FATRAFOL 807v | FLEECE BACK PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURSWARRANTY
1.5mmW:1650mm | L: 16mLight Grey | Lead Grey20 Years
2mmW:1650mm | L: 13mLight Grey | Lead Grey30 Years

STANDING SEAM | IN ACTION

SYSTEM | ADVANTAGES

CONSISTANT SHEET MEMBRANE THICKNESS

SUPERIOR AESTHETICS

FULLY BONDED SYSTEM

EXCELLENT TENSILE STRENGTH

UNAFFECTED BY SUBSTRATE MOISTURE

NON-PENETRATIVE SYSTEM

HOT AIR FUSION WELDED

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

CAD DETAILS |

Fatra DWG detailed section drawings for all associated system detailing.

FATRA PDF DETAILS |

Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

ADDITIONAL | INFORMATION

REQUEST A SAMPLE |

Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.

BOOK A PRESENTATION |

Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.

BOOK A DESIGN MEETING |

Why not let us do the work for you. Click on the design icon to book in a project-specific design consultation

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
