| Accessories

SYSTEM | OVERVIEW

Fatra Australia understand the need to simplyfy the installation process and ensure our systems are the most efficient when it comes to both cost and performance which is why Fatra provide the most diverse and comprehensive range of accessories and ancillaries for all the Fatra systems. The Fatra accessories range provide our clients with fully integrated ancillaries to minimise weak points, reduce installation defects and drastically reduce installation times onsite resulting in the Fatra systems offering superior performance and cost efficency.

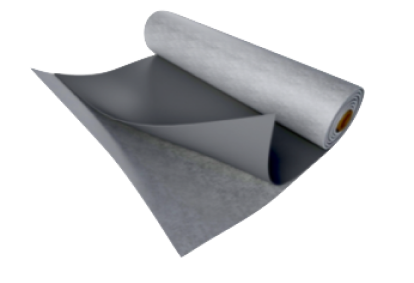

FATRAFOL 807v | FLEECE BACK PVC MEMBRANE

OVERVIEW |

Fatrafol 807v is a 180gsm fleece back PVC sheet membrane. This membrane is used for a fully adhered system mainly in the New Build industry where bonding directly to a concrete or timber substrate is possible and can implemented as part of a variety of different build ups.

PRODUCT | DIMENSIONS

ThicknessLengthWidthTotal m2
1.5mm16.0m1.65m26.40m2
2.0mm13.0m1.65m21.45m2

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

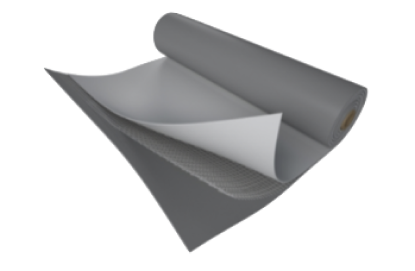

FATRAFOL 810v | REINFORCED PVC MEMBRANE

OVERVIEW |

The Fatrafol 810v polyester reinforced PVC membrane is implemented as part of a mechanically fixed Fatra system. The reinforcement in the Fatrafol 810v gives the membrane the ability to withstand high wind uplift without shearing or tearing the membrane.

PRODUCT | DIMENSIONS

ThicknessLengthWidthTotal m2
1.5mm20.0m2.05m41m2
2.0mm15mm2.05m30.75m2
2.4mm13mm1.3m16.90m2

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

FATRAFOL 807 | BITUMEN REFURB PVC MEMBRANE

OVERVIEW |

The Fatrafol 807 is a 300gsm fleece back PVC sheet membrane. This PVC membrane is specifically designed to be installed directly over a failed bitumen membrane and is used for a fully adhered system and can implemented as part of a variety of different build ups.

PRODUCT | DIMENSIONS

LengthWidthTotal m2
15.4m1.3m20.2m

COLOURS |

RAL 7040

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

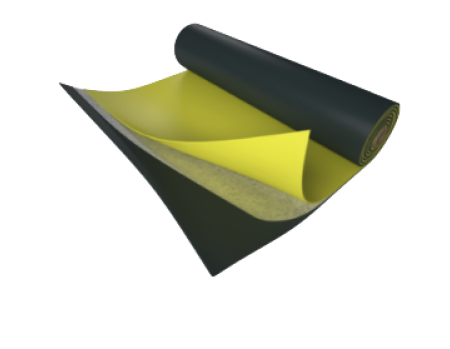

FATRAFOL 803vs | BELOW GROUND MEMBRANE

OVERVIEW |

Fatrafol 803 Yellow/Black membrane is a below ground PVC sheet membrane. The Fatrafol 803 is used to create a waterproofing system for areas such as basements, tunnels, retaining walls and storm water retention tanks.

PRODUCT | DIMENSIONS

ThicknessLengthWidthTotal m2
1.5mm20.0m2.05m41m2
2.0mm15.0m2.05m30.75m2

COLOURS |

YELLOW

BLACK

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

FATRAFOL 804 | DETAIL MEMBRANE

OVERVIEW |

The Fatrafol 804 detailing membrane is an unreinfroced PVC membrane used to detail various different aspects of an area which can not be detailed using prefabricated ancillaries.

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

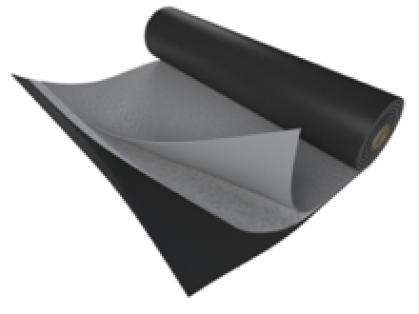

FATRAWALK | WALKWAY MEMBRANE

OVERVIEW |

The FatraWalk PVC walkway membrane is a diamond embossed walkway membrane which is used to deliniate walkways in a specific area. The FatraWalk membrane provides a clear pedestrian path and protects the primary waterproofing system.

PRODUCT | DIMENSIONS

LengthWidthTotal (m2)
20m650mm13m2

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

RAINWATER FLOOR | OUTLETS

OVERVIEW |

The Fatra prefabricated rainwater outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the outlet and welded to the field sheet membrane. All outlets come with an adjustable leaf guard to prevent blockages of the outlets and minimise maintenance.

PIPE | DIAMETERS

Outlet DiameterInside Outlet DiameterOutside Outlet Diameter
50mm50mm56mm
70mm70mm81mm
90mm90mm96mm
110mm110mm116mm
125mm125mm131mm
150mm150mm156mm

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

2D | SECTION DETAIL

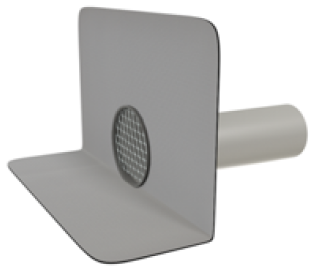

RAINWATER WALL | OUTLETS

OVERVIEW |

The Fatra prefabricated wall outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the vertical wall outlet and welded to the PVC sheet membrane. All wall outlets come with an integrated leaf guard to prevent blockages of the outlets and minimise maintenance.

PIPE |DIAMETERS

Outlet DiameterInside Outlet DiameterOutside Outlet Diameter
50mm50mm56mm
70mm70mm81mm
90mm90mm96mm
110mm110mm116mm
125mm125mm131mm
150mm150mm156mm

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

2D | SECTION DETAIL

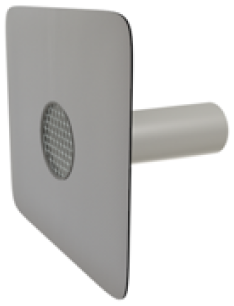

RAINWATER WALL | OVERFLOWS

OVERVIEW |

The Fatra prefabricated rainwater overflows have a PVC membrane flange enabling the outlet to be simply inserted in to the overflow and welded to the PVC sheet membrane. All outlets come with an integrated leaf guard to prevent blockages of the outlets and minimise maintenance.

PIPE |DIAMETERS

Outlet DiameterInside Outlet DiameterOutside Outlet Diameter
50mm50mm56mm
70mm70mm81mm
90mm90mm96mm
110mm110mm116mm
125mm125mm131mm
150mm150mm156mm

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

2D | SECTION DETAIL

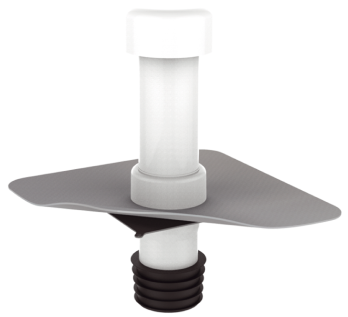

VENTILATION | PIPES

OVERVIEW |

The Fatra prefabricated ventilation pipes have a PVC membrane flange enabling the ventilation pipe to be simply inserted and welded to the PVC sheet membrane. All ventilation pipes come with a rain cap to prevent water ingress through the top of the pipe.

PIPE |DIAMETERS

Outlet DiameterInside Outlet DiameterOutside Outlet Diameter
50mm50mm54mm
70mm70mm78mm
90mm90mm94mm
110mm110mm114mm
125mm125mm129mm
150mm150mm154mm

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

2D | SECTION DETAIL

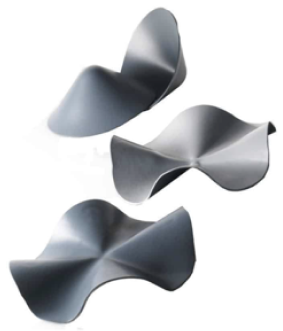

PREFABRICATED | CORNERS

OVERVIEW |

The Fatra prefabricated internal and external corners are used to detail changes in direction and provide excellent overall asethetics and minimise onsite fabricating

COLOURS |

RAL 7040

RAL 7012

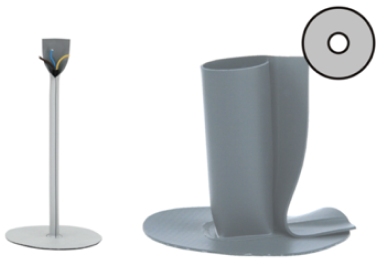

PREFABRICATED | POST COLLARS

OVERVIEW |

The Fatra prefabricated pipe collars are used to detail pipes, posts and the like. The prefabricated pipe collars come in various diameters and are simply wrapped around the pipe/post and hot air fusion welded together and to the Fatrafol PVC membrane system drastically reducing installation time and material costs.

PIPE |DIAMETERS

Outlet Diameter
11mm
20mm
50mm
70mm
90mm
110mm
150mm

COLOURS |

RAL 7040

RAL 7012

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

2D | SECTION DETAIL

LIGHTNING | CONDUCTOR CLIPS

OVERVIEW |

The Fatra lightening conductor clips are hot air fusion welded to the Fatrafol PVC membrane to provide a solution to attach a lightning conductor to the roof without having to penetrate the waterproofing system.

FATRANYL | PVC COATED ANGLES

OVERVIEW |

The Fatranyl PVC coated termination angles come in various different dimensions depending on the purpose and application of the Fatra PVC membrane system. Fatranyl PVC coated angles can alos be fabricated to any site specific dimensions upon request.

PRODUCT | DIMENSIONS

diagramDescriptiona (mm)b (mm)Length (m)
Fatranyl 40mm x 40mm Internally Coated PVC Peel Stop Metal40402
Fatranyl 50mm x 15mm Internally Coated PVC Peel Stop Metal50152
Fatranyl 40mm x 40mm Externally Coated PVC Peel Stop Metal50502
Fatranyl 50mm PVC Coated Flat Bar15502
Fatranyl 50mm x 15mm PVC Coated Chase Termination Metal20502
Fatranyl 50mm x 20mm K-Flashing PVC Coated Metal50502
Fatranyl 50mm x 50mm PVC Crush & Fold Metal50502

COLOURS |

RAL 7040

RAL 7012

FATRAFIX | BAR

OVERVIEW |

The Fatra Fix bar is a steel box section encapsulated in PVC membrane. The Fatrafix is hot air fusion welded to the Fatrafol PVC membrane system and enables clients to mechanically anchor items such as solar panels, mechanical plant, timber decking and the like without physcially penetrating the PVC waterproofing system

PRODUCT | DIMENSIONS

FatraFix Bar Lengths
150mm
300mm
1000mm
3000mm

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

2D | SECTION DETAIL

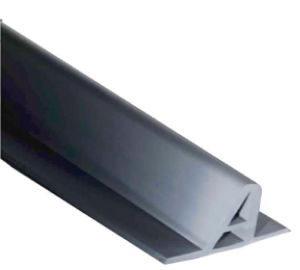

STANDING SEAM | REPLICATE

OVERVIEW |

The Fatra Fix bar is a steel box section encapsulated in PVC membrane. The Fatrafix is hot air fusion welded to the Fatrafol PVC membrane system and enables clients to mechanically anchor items such as solar panels, mechanical plant, timber decking and the like without physcially penetrating the PVC waterproofing system

PRODUCT | DIMENSIONS

COLOURS |

RAL 7040

RAL 7012

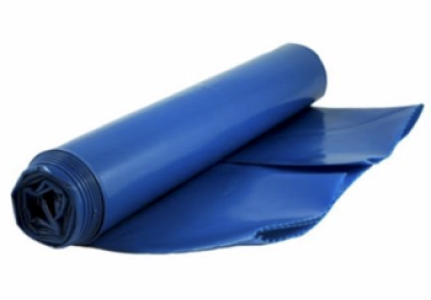

FATRAPAR | VAPOUR CONTROL LAYER

OVERVIEW |

The FatraPar vapour control layer is a 200 guage polyethylene sheet which is used as a vapour barrier for mechancially fixed insulated systems and sealed using Fatra Butyl to prevent ingress from any intersatial condensation.

PRODUCT | DIMENSIONS

LengthWidthTotal (m2)
50m2m100m2

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

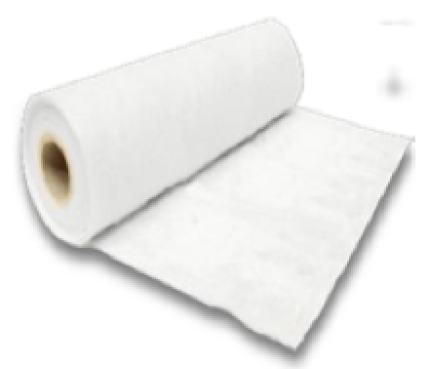

FATRATEX | GEOTEXTILE FABRIC

OVERVIEW |

The FatraTex is a 300gsm Geotextile fabric which is used for protection to the Fatrafol membrane in various applications as well as planter box and green roof protection layers.

PRODUCT | DIMENSIONS

LengthWidthTotal (m2)
50m2m100m2

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

FATRA ARMOUR | PROTECTION MAT

OVERVIEW |

The Fatra Armour protection mat is used as primary protection layer over the Fatrafol PVC membrane to protect the waterproofing system from damage. It is used for systems such as below ground, green roofs and planter box protection. Fatra Armour comes in various thicknesses, lengths and widths.

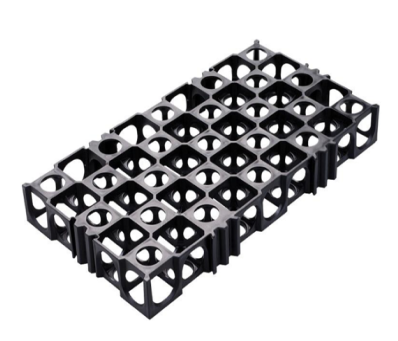

FATRA DRAIN | DRAINAGE CELL

OVERVIEW |

The Fatra Drainage Cell is used as part of a green roof and planter box system to reduce the overal vegatation layers and prevent improve the overal drainage of the rainwater in the green roof and planter box.

FATRABOND | CONTACT ADHESIVE

OVERVIEW |

Fatrabond contact adhesive is a double sided application adhesive used to bond the Fatrafol membranes to large paraphet walls to create a uniform finish.

PRODUCT | INFORMATION

ApplicationCoverageVolume
Double Sided (Substrate & Membrane)3m2 per liter Coverage vaires depending on application20 litre

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

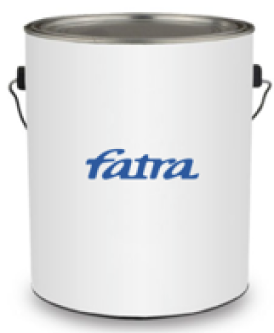

FATRABOND | PAD ADHESIVE

OVERVIEW |

Fatrabond Pad adhesive is used as part of the Fatra Pad system. The Fatra Pad adhesive is applied to the Fatra PVC pads which welds the Fatrafol PVC membrane to the fixing system to create a none penetrative mechancially fixed system achieving a pull off strength of 6.4kn per pad.

PRODUCT | INFORMATION

ApplicationCoverageVolume
Single Sided (FatraPads)325 pads Coverage vaires depending on application5 litre

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

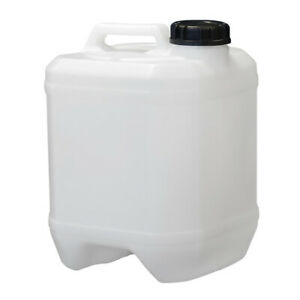

FATRABOND 1215 | FLEECE BACK ADHESIVE

OVERVIEW |

Fatrabond 1215 is a moisture curing polyurethane adhesive used to adhere the Fatrafol 807 and 807v fleece back PVC membranes directly to the substrate or over an existing failed membrane.

PRODUCT | INFORMATION

ApplicationCoverageVolume
Single Sided (Substrate)40 - 60m2 Coverage vaires depending on application20 litre

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.

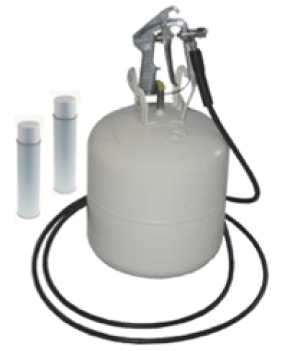

FATRABOND 1210 | INSULATION ADHESIVE

OVERVIEW |

Fatrabond 1210 is a moisture curing polyurethane adhesive used to adhered the KoalaKool insulation to the FatraVap vapour control layer to create a fully adhered insulated system.

PRODUCT | INFORMATION

ApplicationCoverageVolume
Single Sided (Substrate)200m2 per 20 litre Coverage vaires depending on application20 litre

DOWNLOADS |

TECHNICAL DATA SHEETS |

Click on the TDS icon to download all technical data and MSDS documentation for all associated components.
