| BALLASTED UNINSULATED TIMBER ROOF SYSTEM

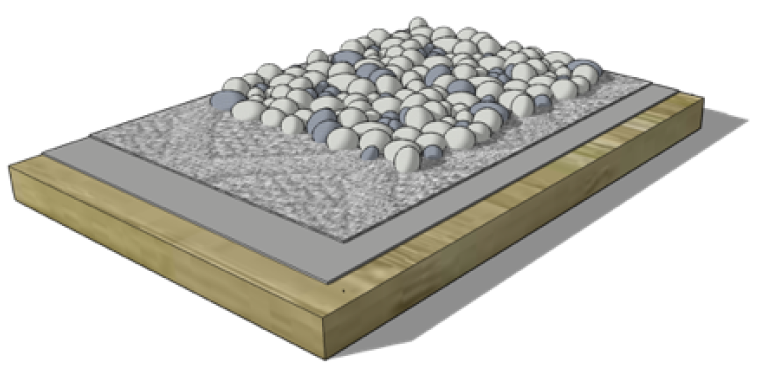

SYSTEM | OVERVIEW

The Fatra ballasted system can be implemented with a number of different types of ballast such as pebbles, adjustable chairs/pedestals and pavers and floating decks can all be used to ballast the PVC membrane system into place.

Depending on site specific requirements and objectives the membrane can be loose laid, mechanically fixed or even fully adhered making this type of system extremely versatile.

Implementing a ballasted system can reduce material and installation cost depending on the method of application whilst providing protection to the PVC membrane from the harsh UV which will in turn increases the life expectancy of the PVC membrane. By implementing a ballasted system it covers the PVC membrane and can provide a very aesthetically pleasing finish.

FATRAFOL 810v | Reinforced PVC Waterproofing Sheet Membrane

The Fatrafol 810v is used to form part of a ballasted system. The Fatrafol 810v provides superior cost efficiency from both a material and installation perspective

FATRA ARMOUR | Protection Mat

Fatra Armour protection mat is loose laid over the Fatrafol PVC membrane to protect the membrane from any sharp edges that may be present with the desired ballast.

PEBBLE | BALLAST

A pebble ballast, adjustable chair and pavers or a floating deck system is installed over the Fatrafol PVC membrane system to ballast the membrane into place without the requirement to bond or fix the membrane into place.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURSWARRANTY
1.5mmW:2050mm | L: 20mLight Grey | Lead Grey20 Years
2mmW:2050mm | L: 15mLight Grey | Lead Grey30 Years

SYSTEM | ACCESSORIES

BOX | GUTTERS

Fatra Australia supply our Fatranyl PVC coated sheet metal to create single skin or insulated box gutter system which offer a sustainable and reliable gutter solution compared to traditional metal box gutters. Fatra gutters remove the requirement to seal the joints using silicone which inevitably breaks down in a very short period of time. Each join in the gutter is hot air fusion welded with a PVC membrane strap creating a permanent waterproofed joint with a life expectancy in excess of 30 years.

RAINWATER | OUTLETS

Fatra offer an array of different rainwater outlets and overflows for all shapes and sizes. The prefabricated outlets have a PVC membrane flange enabling the accessory to be simply inserted into the drainage pipe and hot air fusion welded to the Fatra PVC sheet membrane. This creates a fully integrated waterproofing system and reduces installation times onsite. All outlets come with an adjustable leaf guard to prevent blockages of the outlets to minimise maintenance.

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

EXCELLENT TENSILE STRENGTH

UNAFFECTED BY SUBSTRATE MOISTURE

HOT AIR FUSION WELDED

NONE PENETRATIVE SYSTEM

INCREASED THERMAL PERFORMANCE

INCREASED LIFE EXPECTANCY

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

CAD DETAILS |

Fatra DWG detailed section drawings for all associated system detailing.

FATRA PDF DETAILS |

Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

ADDITIONAL | INFORMATION

REQUEST A SAMPLE |

Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.

BOOK A PRESENTATION |

Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.

BOOK A DESIGN MEETING |

Why not let us do the work for you. Click on the design icon to book in a project-specific design consultation

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
