The Fatra fully adhered insulated roof system is a non-penetrative bonded insulated roof system. This system provides superior aesthetics with zero thermal bridges due to not requiring any fixings as it is fully bonded to the structure. The Fatra fully adhered insulated roof system can reduce air conditioning costs by up to 25% per annum and improve the overall thermal rating by up to 20% due to minimising the amount of thermal bridges compared to installing the insulation to the underside of the roof slab. All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.
The Fatra fully adhered insulated roof system implements the FatraVap self adhered vapour control layer, tissue faced insulation and the Fatrafol 807v fleece back membrane. This drastically reduces the number of fixings required to complete the system making it the perfect solution for noise sensitive environments.
Due to the system not requiring fixings to secure the system into place, the fully adhered insulated system can reduce install times onsite and labour install costs. The fully adhered insulated system also gives the client the opportunity to improve the overall thermal value of the building and create a standing seam replicate system giving the area the aesthetics of a metal roof with the performance of PVC membrane system.

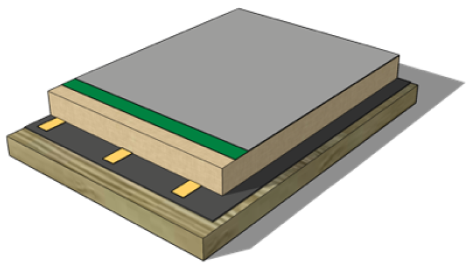

The Fatrafol 807v fleece back membrane is fully adhered directly to the KoalaKool tissue faced insulation board with the Fatrabond 1215 moisture curing polyurethane adhesive.
The KoalaKool insulation is installed over the vapour control and is fully adhered using Fatrabond 1210 moisture curing polyurethane adhesive
The FatraVap self adhered vapour control layer is bonded to the substrate prior to installation of the insulation board.
|1.5mm||W:1650mm | L: 16m||Light Grey | Lead Grey||20 Years|
|2mm||W:1650mm | L: 13m||Light Grey | Lead Grey||30 Years|
Fatra supply standing seam for roofs where the client requires a metal roof look with the performance of a Fatra PVC membrane system, the Fatra standing seam replicate systems provides the perfect solution. This system is purely for modern architecture and offers excellent aesthetics for bespoke projects to create the look of a metal roof.
Fatra offer a unique ancillary which enables the client to mechanically anchor items such as solar panels, air conditioning units and timber decking to the structure without having to penetrate the waterproofing membrane which creates extensive detailing and weak points within the waterproofing system. The Fatrafix Bar is an aluminium bar which is encapsulated in PVC membrane and is simply welded to the field sheet membrane.
Fatra specification word template to simply insert into your project documentation.
Fatra DWG detailed section drawings for all associated system detailing.
Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.
Fatra installation guide provides a step by step guide on how the system comes together
All the technical data and MSDS documentation for all associated components.
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
3D technical specification with full technical methodology of the system.
All Fatra certification, accreditations and test results for the Fatra system.
