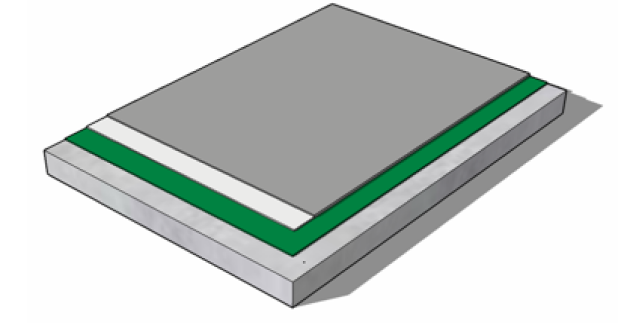

The Fatra fully adhered system is bonded directly to the substrate using the Fatrabond moisture curing polyurethane adhesive. The Fatrafol 807v is unaffected by substrate moisture and inclement weather conditions during installation, unlike liquid applied membranes which can delaminate & defect prematurely.
All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond which doesn't rely on adhesives, sealants or tapes to create a waterproofed joint.
The fully adhered system improves drainage to the rainwater outlets, provides improved aesthetics due to not being exposed to a certain amount of wind flutter and also reduces disruption to the client during the installation process.
The fully adhered system provides the client with a number of overlaying finishes such as a standing seam replicate roof which gives the aesthetics of metal roof with the performance of a PVC membrane with a cost effective twist.
The Fatrafol 807v has a 120gsm fleece backing which enables the PVC membrane to be fully adhered directly to the substrate without any primers or extensive preparation.
The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807v PVC membrane directly to the substrate. The Fatrabond 1215 adhesive is unaffected by substrate moisture and inclement weather improving installation programme and productivity.
|1.5mm||W:1650mm | L: 16m||Light Grey | Lead Grey||20 Years|
|2mm||W:1650mm | L: 13m||Light Grey | Lead Grey||30 Years|
Fatra supply standing seam for roofs where the client requires a metal roof look with the performance of a Fatra PVC membrane system, the Fatra standing seam replicate systems provides the perfect solution. This system is purely for modern architecture and offers excellent aesthetics for bespoke projects to create the look of a metal roof.
Fatra offer a unique ancillary which enables the client to mechanically anchor items such as solar panels, air conditioning units and timber decking to the structure without having to penetrate the waterproofing membrane which creates extensive detailing and weak points within the waterproofing system. The Fatrafix Bar is an aluminium bar which is encapsulated in PVC membrane and is simply welded to the field sheet membrane.
Fatra specification word template to simply insert into your project documentation.
Fatra DWG detailed section drawings for all associated system detailing.
Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.
Fatra installation guide provides a step by step guide on how the system comes together
All the technical data and MSDS documentation for all associated components.
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
3D technical specification with full technical methodology of the system.
All Fatra certification, accreditations and test results for the Fatra system.
Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.
Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.
Quality Management for design and manufacturing
Accreditation for physical performance and fire resistance
Effective Environmental Management System for manufacturing
Conforms with health, safety and environmental protection standards
Accreditation of performance and resistance for multiple elements.
Received A+ rating for environmentally friendly products.
Fatra Australia understand the importance of managing the quality of our systems. Fatra attend site at regular intervals to carry out quality inspections.
Fatra provide support at the design stage of our clients projects to ensure the most efficient waterproofing system is tailored to our clients requirements and site specific project objectives.
We work continuously on training and developing the knowledge of Fatra systems with all of our clients- from approved and certified installers through to the architects and consultants.
