FULLY ADHERED LIQUID REFURBISHMENT

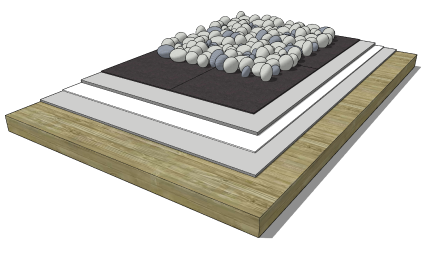

SYSTEM OVERVIEW

The Fatra ballasted system can be implemented with a number of different types of ballast. Including pebbles, adjustable chairs/pedestals and pavers or floating timber decks can be used to ballast the PVC membrane system into place.

Depending on site specific requirements and objectives the membrane can be loose laid or mechanically fixed over the existing failed membrane which substantially reduces the overall project costs and risks associated with removing existing membranes and exposing the existing structure to water damage during this process.

Implementing a ballasted system can reduce cost depending on the method of application whilst providing protection to the PVC membrane from the harsh UV which will in-turn increase the life expectancy of the PVC membrane. By implementing a ballasted system it covers the PVC membrane and can provide a very aesthetically pleasing finish.

FATRA ARMOUR | PROTECTION MAT

The Fatra Armour protection mat is installed directly over the PVC membrane to provide protection to the waterproofing system from any sharp edges and pertruding items which might be present in the desired ballast.

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

The Fatrafol 810v reinforced membrane is installed over the FatraTex geotextile protection layer. The Fatrafol 810v is loose laid over the protection layer and is ballasted into place by the desired ballast.

GEOTEXTILE | FABRIC

FatraTex geo-textile fabric is loose laid over the existing failed membrane to provide protection to the Fatrafol PVC membrane from any potential contaminants which maybe present in the existing membrane.

DOWNLOADS

GET ALL FILES IN EMAIL

WORD SPEC
Specification word template to simply insert into your project documentation.
Insert into project docs
Tailor to requirements
CAD DETAILS
DWG detailed section drawings for all associated system detailing.
Tailor to requirements
Branding capability
2D DRAWINGS
Cross section drawings for all associated system detailing.
Precise system detailing
Compact design
INSTALL GUIDE
Provides a step by step guide on how the system comes together
3d steps guide
Compact design
TECH DATA SHEETS
All the technical data & MSDS documentation.
System specific TDS
TDS for every component
MAINTENANCE
Provides full guidance on how to maintain the Fatra system.
Maximise system life span
Includes maintenance log
3D TECH SPEC
3D images with full methodology of the system.
3D installation manual
Customise to any project
CERTIFICATION
All certification, accreditations & test results for the Fatra system.
Performance transparency
System specific
