FULLY ADHERED LIQUID REFURBISHMENT

SYSTEM OVERVIEW

The Fatra mechanically fixed insulated roof system has been specifically engineered by Fatra to create a non-penetrative mechanically fixed insulated system. This system provides the client with superior thermal efficiency, reduced installation programmes, reduced material costs and can reduce air conditioning costs by up to 25% per annum.

Depending on the condition of the existing membrane and a condensation risk analysis report, this system can be installed directly over the existing failed membrane substantially reducing the overall project costs and risks associated with removing existing membranes and exposing the existing structure to water damage during this process.

As building standards evolve and change over time, many existing structures are likely to be insufficiently insulated or in some cases not insulated at all. By implementing a Fatra insulated system not only does it provide the client with a more comfortable living or working environment but can bring the building up to standard.

Unlike traditional membrane systems such as liquid applied systems where the membrane has to be installed below the insulation and a ballast to weight the insulation into place, the Fatra insulated removes the requirement for the pebble ballast which completely obscures the membrane making any rectification or refurbishment extensive and very costly as well as adding a substantial amount of additional and unnecessary weight to the structure itself.

The Fatra systems are hot air fusion welded along all joints, laps and terminations creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint making it the most durable and reliable waterproofing system on the market.

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

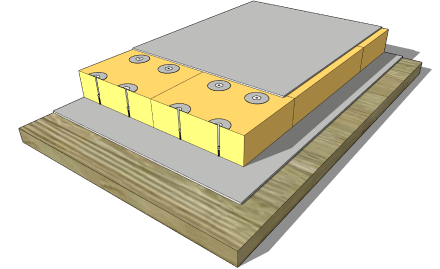

The Fatrafol 810v reinforced membrane is installed over the PIR insulation. The Fatrafol 810v is bonded to Fatra Australia's uniquely engineered Pad system which is fused to the fixing system creating a none penetrative mechanically fixed system.

PIR INSULATION | FOIL FACED INSULATION BOARD

The PIR insulation is installed over the existing failed membrane and is mechanically fixed using approved fixings and telescopic tubes. The FatraPad system is secured to the structure in accordance with AS1170 Part 2.

DOWNLOADS

GET ALL FILES IN EMAIL

WORD SPEC
Specification word template to simply insert into your project documentation.
Insert into project docs
Tailor to requirements
CAD DETAILS
DWG detailed section drawings for all associated system detailing.
Tailor to requirements
Branding capability
2D DRAWINGS
Cross section drawings for all associated system detailing.
Precise system detailing
Compact design
INSTALL GUIDE
Provides a step by step guide on how the system comes together
3d steps guide
Compact design
TECH DATA SHEETS
All the technical data & MSDS documentation.
System specific TDS
TDS for every component
MAINTENANCE
Provides full guidance on how to maintain the Fatra system.
Maximise system life span
Includes maintenance log
3D TECH SPEC
3D images with full methodology of the system.
3D installation manual
Customise to any project
CERTIFICATION
All certification, accreditations & test results for the Fatra system.
Performance transparency
System specific
