SYSTEM OVERVIEW

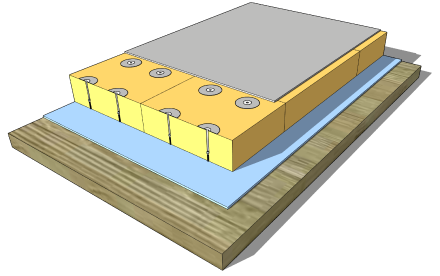

The Fatra mechanically fixed insulated roof system has been specifically engineered by Fatra to create a non-penetrative mechanically fixed insulated system. This system provides the client with superior thermal efficiency, reduced installation programmes, reduced material costs and can reduce air conditioning costs by up to 25% per annum.

Depending on the condition of the existing membrane and a condensation risk analysis report, this system can be installed directly over the existing failed membrane substantially reducing the overall project costs and risks associated with removing existing membranes and exposing the existing structure to water damage during this process.

As building standards evolve and change over time, many existing structures are likely to be insufficiently insulated or in some cases not insulated at all. By implementing a Fatra insulated system not only does it provide the client with a more comfortable living or working environment but can bring the building up to standard.

Unlike traditional membrane systems such as liquid applied systems where the membrane has to be installed below the insulation and a ballast to weight the insulation into place, the Fatra insulated removes the requirement for the pebble ballast which completely obscures the membrane making any rectification or refurbishment extensive and very costly as well as adding a substantial amount of additional and unnecessary weight to the structure itself.

The Fatra systems are hot air fusion welded along all joints, laps and terminations creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint making it the most durable and reliable waterproofing system on the market.
