| FULLY ADHERED INSULATED LIQUID REFURBISHMENT
SYSTEM | OVERVIEW

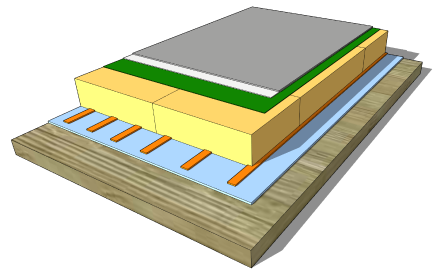

The Fatra fully adhered insulated roof system is a completely none penetrating fully adhered insulated system. This system provides the client with the most thermally efficient insulated system due to there being zero thermal bridges within the system and its components. Depending on the condition of the existing membrane and a condensation risk analysis report, this system can be installed directly over the existing failed membrane substantially reducing the overall project costs and risks associated with removing existing membranes.
As building standards evolve and change over time, many existing structures are likely to be insufficiently insulated or in some cases not insulated at all. By implementing a Fatra insulated system not only does it provide the client with a more comfortable living or working environment but can bring the building up to standard.
All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.
Implementing a tissue faced insulation board and the Fatrafol 807v fleece back membrane it minimises the number of fixings required to complete the system making it the perfect solution for live environment projects.
FATRAFOL 807v | FLEECE BACK PVC SHEET MEMBRANE
The Fatrafol 807v has a fleece backing which enables the PVC membrane to be fully adhered directly to the KoalaKool tissue faced insulation board using the Fatrabond 1215 moisture curing polyurethane adhesive.
KOALAKOOL Insulation | TISSUE FACED INSULATION BOARD
The KoalaKool by Fatra insulation is fully adhered over the existing failed membrane using Fatrabond 1210 insulation adhesive to bond the insulation into place.
FATRABOND 1210 | MOISTURE CURING ADHESIVE
The Fatrabond 1210 insulation adhesive is used to fully adhere the KoalaKool insulation directly to the existing membrane. The Fatrabond adhesive is unaffected by the substrate moisture or inclement weather improving productivity and reducing overall installation programmes.
FATRAFOL 807v | FLEECE BACK PVC MEMBRANE
THICKNESS | DIMENSIONS | COLOURS |
|---|---|---|
| 1.5mm | W:1.65m | L: 16m | M2| 26.40 | Light Grey | Lead Grey |
| 2.0mm | W:1.65m | L: 13m | M2| 21.45 | Light Grey | Lead Grey |
WARRANTY | PERIODS
Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane
Fatra offer an unrivalled manufacturers backed 30 year warranty* Contact Fatra for more information.
DESIGN | CONSIDERATION
ROTTING | TIMBER
STRUCTURAL | CAPACITY
INSUFFICIENT | FALLS
CAVITY | HEIGHTS
INSUFFICIENT | DRAINAGE
DOOR | THRESHOLD
OVERLAYING | FINISHES
PENETRATION | LOCATION
COMPATIBLE | PRODUCTS
SYSTEM | ADVANTAGES
CONSISTENT SHEET MEMBRANE THICKNESS
SUPERIOR THERMAL EFFICIENCY
DIRECTLY APPLICATION OVER MEMBRANE
HOT AIR FUSION WELDED
IDEAL FOR NOISE SENSATIVE PROJECTS
SUPERIOR AESTHETICS
FULLY ADHERED SYSTEM
SYSTEM | ACCESSORIES
WALL | OUTLETS
The Fatra prefabricated wall outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the vertical wall outlet and welded to the PVC sheet membrane. All wall outlets come with an integrated leaf guard to prevent blockages of the outlets and minimise maintenance.
RAINWATER | OUTLETS
The Fatra prefabricated rainwater outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the outlet and welded to the field sheet membrane. All outlets come with an adjustable leaf guard to prevent blockages of the outlets and minimise maintenance.
DOWNLOADS | CLICK THE ICONS TO DOWNLOAD
GET ALL FILES IN EMAIL
WORD SPECIFICATION |
Fatra specification word template to simply insert into your project documentation.
FATRA PDF DETAILS |
Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.
DESIGN CONSIDERATION |
Design considerations covering aspects of the project which must be considered.
INSTALL GUIDE |
Fatra installation guide provides a step by step guide on how the system comes together
CERTIFICATION |
All Fatra certification, accreditations and test results for the Fatra system.
TECHNICAL DATA SHEETS |
All the technical data and MSDS documentation for all associated components.
MAINTENANCE MANUAL |
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
WARRANTIES |
Request a sample of the Fatra manufacturer backed warranty.
3D TECH SPECS |
3D technical specification with full technical methodology of the system.
INSPECTION FORM |
Fatra inspection form provides specific inspection process to be completed upon completion.
FATRA | SERVICES
SITE SURVEYS |
Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.
SPECIFICATIONS |
Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.
SITE SPECIFIC DRAWINGS |
Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.
APPROVED INSTALLERS |
Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.
QUALITY INSPECTIONS |
Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.
SCHEDULED MAINTENANCE |
Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.
SYSTEM | CERTIFICATION
ISO9001 |
Quality Management for design and manufacturing
FM APPROVALS |
Accreditation for physical performance and fire resistance
ISO14001 |
Effective Environmental Management System for manufacturing
CE |
Conforms with health, safety and environmental protection standards
BBA |
Accreditation of performance and resistance for multiple elements.
BREEAM |
Received A+ rating for environmentally friendly products.
