The Fatra mechanically fixed insulated roof system has been specifically engineered by Fatra to create a non-penetrative mechanically fixed insulated system. This system provides the client with superior thermal efficiency, reduced installation programmes, reduced material costs and can reduce air conditioning costs by up to 25% per annum.
Depending on the condition of the existing membrane and a condensation risk analysis report, this system can be installed directly over the existing failed membrane substantially reducing the overall project costs and risks associated with removing existing membranes and exposing the existing structure to water damage during this process.
As building standards evolve and change over time, many existing structures are likely to be insufficiently insulated or in some cases not insulated at all. By implementing a Fatra insulated system not only does it provide the client with a more comfortable living or working environment but can bring the building up to todays standards.
Unlike traditional membrane systems such as liquid applied systems where the membrane has to be installed below the insulation and a ballast to weight the insulation into place, the Fatra insulated removes the requirement for the pebble ballast which completely obscures the membrane making any rectification or refurbishment extensive and very costly as well as adding a substantial amount of additional and unnecessary weight to the structure itself.
The Fatra systems are hot air fusion welded along all joints, laps and terminations creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint making it the most durable and reliable waterproofing system on the market.

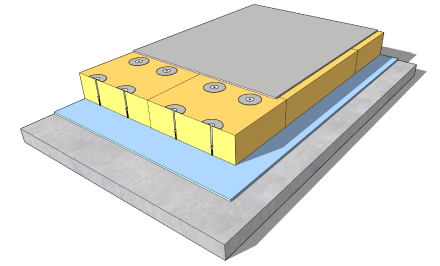

The Fatrafol 810v reinforced membrane is installed over the KoalaKool insulation. The Fatrafol 810v is bonded to Fatra Australia's uniquely engineered Pad system which is fused to the fixing system creating a none penetrative mechanically fixed system.
The KoalaKool insulation is installed over the existing failed membrane and is mechanically fixed using approved fixings and telescopic tubes. The FatraPad system is secured to the structure in accordance with AS1170 Part 2.
THICKNESS![]() | DIMENSIONS![]() | COLOURS![]() |
---|---|---|
1.5mm | W:2.05m | L: 20m | M2| 41 | Light Grey | Lead Grey |
2.0mm | W:2.05m | L: 15m | M2| 30 | Light Grey | Lead Grey |
Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane
Fatra offer an unrivalled manufacturers backed 30 year warranty for our Fatrafol 2.0mm PVC Membrane
The Fatra prefabricated pipe collars are used to detail pipes, posts amongst other standard penetrations. The prefabricated pipe collars come in various diameters and are simply wrapped around the pipe/post and hot air fusion welded together and to the Fatrafol PVC membrane system drastically reducing installation time and material costs.
The Fatra prefabricated rainwater overflows have a PVC membrane flange enabling the outlet to be simply inserted in to the overflow and welded to the PVC sheet membrane. All outlets come with an integrated leaf guard to prevent blockages of the outlets and minimise maintenance.
Fatra specification word template to simply insert into your project documentation.
Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.
Design considerations covering aspects of the project which must be considered.
Fatra installation guide provides a step by step guide on how the system comes together
All Fatra certification, accreditations and test results for the Fatra system.
All the technical data and MSDS documentation for all associated components.
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
Request a sample of the Fatra manufacturer backed warranty.
3D technical specification with full technical methodology of the system.
Fatra inspection form provides specific inspection process to be completed upon completion.
Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.
Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.
Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.
Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.
Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.
Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.
