| BALLASTED PLANTER BOX SINGLE PLY REFURBISHMENT

SYSTEM | OVERVIEW

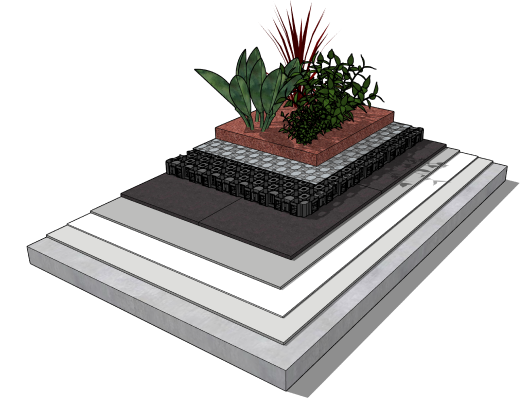

The Fatra planter box system incorporates a protection layer of FatraTex 300gsm geotextile fabric over the existing membrane to provide protection to the Fatrafol PVC membrane. The Fatrafol 810v PVC waterproofing membrane can be loose laid or spot fixed directly over the FatraTex geo-textile protection layer. The system is protected by Fatra Armour protection mat prior to the installation of the Fatra drainage cell, filter fabric and vegetation layer. The specifications for the different layers will depend on the client’s objectives, requirements and project specific specifications. Fatra provides all components for our planter box systems making it simple and convenient for our approved applicators.

The Fatrafol PVC membranes are tested to FLL standards and are 100% root resistant, proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

With the Fatrafol membranes 100% recyclable at the end of its service life it can be made using up to 30% recycled materials, Fatrafol PVC membrane are the most sustainable and environmentally friendly waterproofing membranes on the market.

DRAINAGE | CELL

The drainage cell is placed over the Fatra Armour protection mat to provide sufficient drainage capabilities to the vegetation layer.

FATRA ARMOUR | PROTECTION MAT

The Fatra Armour protection mat is installed directly over the PVC membrane to provide protection to the waterproofing system from any sharp edges and protruding items which might be present in the desired ballast.

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

The Fatrafol 810v reinforced membrane is installed over the FatraTex geotextile protection layer and can be either loose laid or spot fixed. The Fatrafol 810v is completely root resistant and is tested to FLL standards.

GEOTEXTILE | FABRIC

FatraTex geo-textile fabric is loose laid over the existing failed membrane to provide protection to the Fatrafol PVC membrane from any potential contaminants which maybe present in the existing membrane.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURS
1.5mmW:2.05m | L: 20m M2 | 41Light Grey | Lead Grey
2.0mmW:2.05m | L: 15m M2 | 30Light Grey | Lead Grey

WARRANTY | PERIODS

Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane

Fatra offer an unrivalled manufacturers backed 30 year warranty for our Fatrafol 2.0mm PVC Membrane

DESIGN | CONSIDERATION

CONCRETE | CANCER

STRUCTURAL | CRACKING

INSUFFICIENT | FALLS

CONJOINING | AREAS

INSUFFICIENT | DRAINAGE

COMPATIBLE | PRODUCTS

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

100% ROOT RESISTANT

EXISTING REMOVAL NOT REQUIRED

HOT AIR FUSION WELDED

INCREASED LIFE EXPECTANCY

DECREASED SYSTEM COSTS

UNAFFECTED BY SUBSTRATE MOISTURE

SYSTEM | ACCESSORIES

GREEN ROOF | INSPECTION TOWER

The Fatra green roof inspection tower is used in conjunction with the Fatra rainwater outlets. The Fatra inspection tower protects the outlet from blockages and has a removable lid to enable regular cleaning and maintenance to be carried out.

DRAINAGE | CELL

Fatra drainage cell unique structure holds water for passive irrigation in drier periods, whilst any excess water is removed by the multi-directional vortex flow through the drainage cell.

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

FATRA PDF DETAILS |

Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.

DESIGN CONSIDERATION |

Design considerations covering aspects of the project which must be considered.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

WARRANTIES |

Request a sample of the Fatra manufacturer backed warranty.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

INSPECTION FORM |

Fatra inspection form provides specific inspection process to be completed upon completion.
