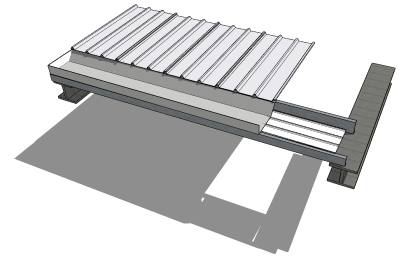

| UNINSULATED PVC COATED BOX GUTTER REPLACEMENT

SYSTEM | OVERVIEW

Fatra PVC coated box gutters have a span capability of up to 8m and offers superior sustainability and a reliable gutter solution compared to the traditional metal box gutters. Fatra PVC coated gutters remove the requirement to seal the joints, stop ends and drainage points using silicone sealant which inevitably breaks down in a very short period of time. All joints, stop ends and drainage points in the gutter are hot air fusion welded with PVC membrane straps or prefabricated accessories creating a permanent and homogeneous waterproofed system with a life expectancy in excess of 30 years.

Fatra prefabricated stop ends, rainwater outlets and overflows can also be implemented to drastically reduce installation time on-site and create a fully homogenous PVC membraned box gutter.

FATRANYL | PVC COATED STEEL LINED BOX GUTTER

Fatranyl PVC coated steel lined gutters are designed for all types of gutters. The Fatranyl gutters are prefabricated to site specific lengths and widths depending on site specific requirements.^

FATRAFOL 804 | DETAILING MEMBRANE

All conjoining gutter laps and stop ends are simply riveted together and are fully sealed and waterproofed using Fatrafol 804 PVC Membrane which is hot air fusion welded to the PVC lined steel to create a physical and permanent waterproof joint.

FATRANYL | PVC COATED STEEL LINED GUTTER

THICKNESSCOLOURSWARRANTY
0.6mm PVC | 0.6mm SteelLight Grey | Lead Grey25 Years

DESIGN | CONSIDERATION

INSUFFICIENT | FALLS

INSUFFICIENT | DRAINAGE

COMPATIBLE | PRODUCTS

CONJOINING | AREAS

STRUCTURAL | CAPACITY

ROOF | SAFETY

SYSTEM | ADVANTAGES

INCREASED LIFE EXPECTANCY

EXCELLENT SPAN CAPABILITIES

UNAFFECTED BY STRUCTURAL MOVEMENT

HOT AIR FUSION WELDED

NOT RELIANT ON SILICONE SEALS

DECREASED SYSTEM COSTS

EXCELLENT TENSILE STRENGTH

SYSTEM | ACCESSORIES

OVERFLOW | OUTLETS

Fatra prefabricated rainwater overflow outlets come in various shapes and sizes complete with an integrated PVC pipe and Fatrafol PVC membrane flange making detailing overflows fast, efficient and minimises weak points in the most critical areas.

RAINWATER | OUTLETS

Fatra offer an array of different rainwater outlets and overflows for all shapes and sizes. The prefabricated outlets have a PVC membrane flange enabling the accessory to be simply inserted into the drainage pipe and hot air fusion welded to the Fatra PVC sheet membrane. This creates a fully integrated waterproofing system and reduces installation times onsite. All outlets come with an adjustable leaf guard to prevent blockages of the outlets to minimise maintenance.

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

FATRA PDF DETAILS |

Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.

DESIGN CONSIDERATION |

Design considerations covering aspects of the project which must be considered.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

WARRANTIES |

Request a sample of the Fatra manufacturer backed warranty.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

INSPECTION FORM |

Fatra inspection form provides specific inspection process to be completed upon completion.

FATRA | SERVICES

SITE SURVEYS |

Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.

SPECIFICATIONS |

Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.

SITE SPECIFIC DRAWINGS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

APPROVED INSTALLERS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

QUALITY INSPECTIONS |

Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.

SCHEDULED MAINTENANCE |

Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
