FULLY ADHERED LIQUID REFURBISHMENT

SYSTEM OVERVIEW

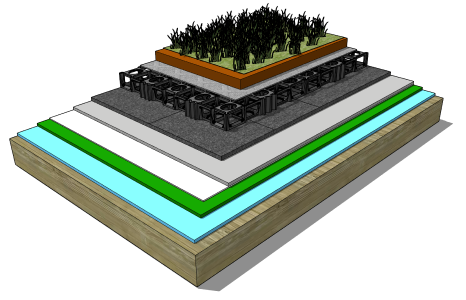

The Fatra fully adhered green roof system incorporates Fatrafol 807v PVC waterproofing system bonded directly to the existing failed membrane using the Fatrabond moisture curing adhesive with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect fully adhered green roof system.

The specifications for the different layers will depend on the clients objectives, requirements and project specific specifications. Fatra provide all components for green roof projects making it simple and convenient for our approved contractors.

The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.

FATRA ARMOUR | PROTECTION MAT

The Fatra Armour protection mat is installed directly over the PVC membrane to provide protection to the waterproofing system from any sharp edges and pertruding items which might be present in the green roof overlaying finishes

FATRAFOL 807 | FLEECE BACK PVC SHEET MEMBRANE

The Fatrafol 807v has a fleece backing which enables the PVC membrane to be fully adhered directly over the existing failed membrane.

FATRABOND 1215 | MOISTURE CURING ADHESIVE

The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807v PVC membrane directly to the existing membrane. The Fatrabond adhesive is unaffected by the substrate moisture or inclement weather improving productivity and reducing overall installation programmes.

DOWNLOADS

GET ALL FILES IN EMAIL

WORD SPEC
Specification word template to simply insert into your project documentation.
Insert into project docs
Tailor to requirements
CAD DETAILS
DWG detailed section drawings for all associated system detailing.
Tailor to requirements
Branding capability
2D DRAWINGS
Cross section drawings for all associated system detailing.
Precise system detailing
Compact design
INSTALL GUIDE
Provides a step by step guide on how the system comes together
3d steps guide
Compact design
TECH DATA SHEETS
All the technical data & MSDS documentation.
System specific TDS
TDS for every component
MAINTENANCE
Provides full guidance on how to maintain the Fatra system.
Maximise system life span
Includes maintenance log
3D TECH SPEC
3D images with full methodology of the system.
3D installation manual
Customise to any project
CERTIFICATION
All certification, accreditations & test results for the Fatra system.
Performance transparency
System specific
