| BALLASTED LIQUID REFURBISHMENT GREEN ROOF

SYSTEM | OVERVIEW

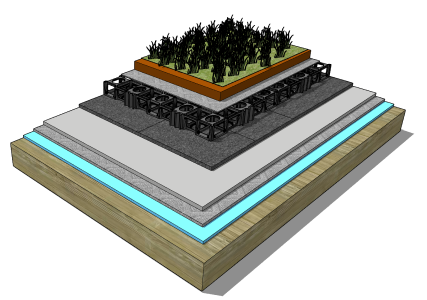

The Fatra ballasted green roof system incorporates the Fatrafol 810v PVC membrane waterproofing system with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect ballasted green roof system. The FatraTex geotextile fabric is installed over the existing failed membrane to protect the Fatrafol 810v PVC membrane.

The specifications for the different layers will depend on the clients objectives, requirements and project specific specifications.

Fatra provide all components for green roof projects making it simple and convenient for our approved contractors.

The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.

FATRA ARMOUR | PROTECTION MAT

The Fatra Armour protection mat is installed directly over the PVC membrane to provide protection to the waterproofing system from any sharp edges and pertruding items which might be present in the green roof overlaying finishes

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

The Fatrafol 810v reinforced membrane is installed over the FatraTex geotextile protection layer. The Fatrafol 810v is loose laid over the protection layer and is ballasted into place by the desired ballast.

GEOTEXTILE | FABRIC

FatraTex geo-textile fabric is loose laid over the existing failed membrane to provide protection to the Fatrafol PVC membrane from any potential contaminants which maybe present in the existing membrane.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURS
1.5mmW:2.05m | L: 20m M2 | 41Light Grey | Lead Grey
2.0mmW:2.05m | L: 15m M2 | 30Light Grey | Lead Grey

WARRANTY | PERIODS

Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane

Fatra offer an unrivalled manufacturers backed 30 year warranty for our Fatrafol 2.0mm PVC Membrane

DESIGN | CONSIDERATION

ROTTING | TIMBER

STRUCTURAL | CAPACITY

INSUFFICIENT | FALLS

PENETRATION | LOCATION

INSUFFICIENT | DRAINAGE

COMPATIBLE | PRODUCTS

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

UNAFFECTED BY SUBSTRATE MOISTURE

EXISTING REMOVAL NOT REQUIRED

HOT AIR FUSION WELDED

INCREASED LIFE EXPECTANCY

DECREASED SYSTEM COSTS

EXCELLENT AESTHETICS

SYSTEM | ACCESSORIES

VENTILATION | PIPES

The Fatra prefabricated ventilation pipes have a PVC membrane flange enabling the ventilation pipe to be simply inserted and welded to the PVC sheet membrane. All ventilation pipes come with a rain cap to prevent water ingress through the top of the pipe.

FATRAFIX | BAR

The Fatra Fix bar is an aluminium box section encapsulated in PVC membrane. The Fatrafix bar is hot air fusion welded to the Fatrafol PVC membrane system and enables clients to mechanically anchor items such as solar panels, mechanical plant, timber decking and other roof mountable units without physically penetrating the membrane.
