| FULLY ADHERED SINGLE PLY REFURBISHMENT
SYSTEM | OVERVIEW

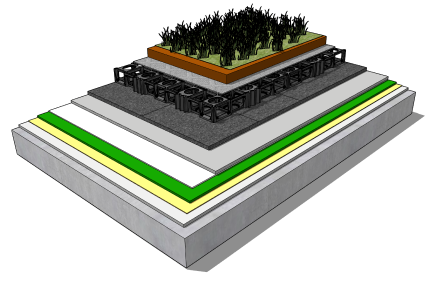

The Fatra fully adhered green roof system incorporates Fatrafol 807v PVC waterproofing system bonded directly to the existing failed membrane using the Fatrabond moisture curing adhesive with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect fully adhered green roof system.
The specifications for the different layers will depend on the clients objectives, requirements and project specific specifications. Fatra provide all components for green roof projects making it simple and convenient for our approved contractors.
The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.
Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.
FATRA ARMOUR | PROTECTION MAT
The Fatra Armour protection mat is installed directly over the PVC membrane to provide protection to the waterproofing system from any sharp edges and pertruding items which might be present in the green roof overlaying finishes
FATRAFOL 807 | FLEECE BACK PVC SHEET MEMBRANE
The Fatrafol 807v has a fleece backing which enables the PVC membrane to be fully adhered directly over the existing failed membrane.
FATRABOND 1215 | MOISTURE CURING ADHESIVE
The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807v PVC membrane directly to the existing membrane once the Fatra primer has been applied. The Fatrabond adhesive is unaffected by the substrate moisture or inclement weather improving productivity and reducing overall installation programmes.
FATRAFOL 807 | FLEECE BACK PVC MEMBRANE
THICKNESS | DIMENSIONS | COLOURS |
|---|---|---|
| 1.5mm | W:1.65m | L: 16m M2 | 26.40 | Light Grey | Lead Grey |
| 2.0mm | W:1.65m | L: 13m M2 | 21.45 | Light Grey | Lead Grey |
WARRANTY | PERIODS
Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane
Fatra offer an unrivalled manufacturers backed 30 year warranty* Contact Fatra for more information
DESIGN | CONSIDERATION
CONCRETE | CANCER
STRUCTURAL | CRACKING
INSUFFICIENT | FALLS
PENETRATION | LOCATIONS
INSUFFICIENT | DRAINAGE
COMPATIBLE | PRODUCTS
SYSTEM | ADVANTAGES
CONSISTENT SHEET MEMBRANE THICKNESS
VARIOUS OVERLAYING FINISHES
APPLIED DIRECTLY OVER EXISTING MEMBRANE
HOT AIR FUSION WELDED
IDEAL FOR NOISE SENSATIVE PROJECTS
SUPERIOR AESTHETICS
FULLY ADHERED SYSTEM
SYSTEM | ACCESSORIES
RAINWATER | OUTLETS
The Fatra prefabricated rainwater outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the outlet and welded to the field sheet membrane. All outlets come with an adjustable leaf guard to prevent blockages of the outlets and minimise maintenance.
FATRAFIX | BAR
The Fatra Fix bar is an aluminium box section encapsulated in PVC membrane. The Fatrafix bar is hot air fusion welded to the Fatrafol PVC membrane system and enables clients to mechanically anchor items such as solar panels, mechanical plant, timber decking and other roof mountable units without physically penetrating the membrane.
DOWNLOADS | CLICK THE ICONS TO DOWNLOAD
GET ALL FILES IN EMAIL
WORD SPECIFICATION |
Fatra specification word template to simply insert into your project documentation.
FATRA PDF DETAILS |
Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.
DESIGN CONSIDERATION |
Design considerations covering aspects of the project which must be considered.
INSTALL GUIDE |
Fatra installation guide provides a step by step guide on how the system comes together
CERTIFICATION |
All Fatra certification, accreditations and test results for the Fatra system.
TECHNICAL DATA SHEETS |
All the technical data and MSDS documentation for all associated components.
MAINTENANCE MANUAL |
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
WARRANTIES |
Request a sample of the Fatra manufacturer backed warranty.
3D TECH SPECS |
3D technical specification with full technical methodology of the system.
INSPECTION FORM |
Fatra inspection form provides specific inspection process to be completed upon completion.
FATRA | SERVICES
SITE SURVEYS |
Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.
SPECIFICATIONS |
Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.
SITE SPECIFIC DRAWINGS |
Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.
APPROVED INSTALLERS |
Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.
QUALITY INSPECTIONS |
Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.
SCHEDULED MAINTENANCE |
Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.
SYSTEM | CERTIFICATION
ISO9001 |
Quality Management for design and manufacturing
FM APPROVALS |
Accreditation for physical performance and fire resistance
ISO14001 |
Effective Environmental Management System for manufacturing
CE |
Conforms with health, safety and environmental protection standards
BBA |
Accreditation of performance and resistance for multiple elements.
BREEAM |
Received A+ rating for environmentally friendly products.
