| BALLASTED INSULATED LIQUID GREEN ROOF REFURBISHMENT

SYSTEM | OVERVIEW

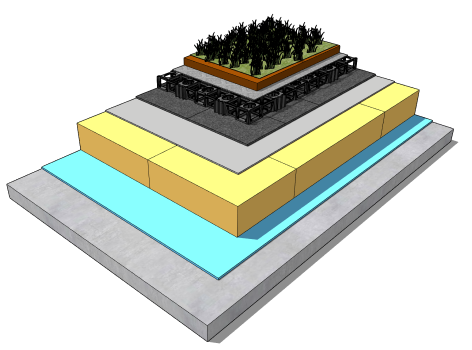

The Fatra insulated green roof system incorporates the KoalaKool insulation board below the Fatrafol PVC membrane waterproofing system with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect green roof system. This system is simply installed directly over the existing failed membrane.

The specifications for the different layers will depend on the clients objectives, requirements and project specific specifications.

Fatra provide all components for green roof projects making it simple and convenient for our approved contractors.

The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.

GREEN ROOF | OVERLAYING FINISHES

Fatra Armour protection mat is loose laid over the Fatrafol PVC Membrane to protect the membrane from the drainage cell. Installation of Fatra Drainage cell is then installed with a filter fabric applied above the drainage cell prior to the installation of the green roof build up.

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

The Fatrafol 810v reinforced membrane is installed over the KoalaKool insulation. The Fatrafol 810v is ballasted into place with the green roof build installed above

KOALAKOOL INSULATION | FOIL FACED INSULATION BOARD

The KoalaKool insulation is installed over the existing failed membrane and is ballasted into place with the green build up which is installed above the Fatra system.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURS
1.5mmW:2.05m | L: 20m M2 | 41Light Grey | Lead Grey
2.0mmW:2.05m | L: 15m M2 | 30Light Grey | Lead Grey

WARRANTY | PERIODS

Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane

Fatra offer an unrivalled manufacturers backed 30 year warranty for our Fatrafol 2.0mm PVC Membrane

DESIGN | CONSIDERATION

CONCRETE | CANCER

STRUCTURAL | CRACKING

INSUFFICIENT | FALLS

PENETRATION | LOCATIONS

INSUFFICIENT | DRAINAGE

COMPATIBLE | PRODUCTS

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

UNAFFECTED BY SUBSTRATE MOISTURE

EXISTING REMOVAL NOT REQUIRED

HOT AIR FUSION WELDED

UNRIVALLED WIND UPLIFT CAPABILITY

DECREASED SYSTEM COSTS

EXCELLENT TENSILE STRENGTH

SYSTEM | ACCESSORIES

PREFABRICATED | COLLARS

The Fatra prefabricated pipe collars are used to detail pipes, posts amongst other standard penetrations. The prefabricated pipe collars come in various diameters and are simply wrapped around the pipe/post and hot air fusion welded together and to the Fatrafol PVC membrane system drastically reducing installation time and material costs.

WALL | OVERFLOWS

The Fatra prefabricated rainwater overflows have a PVC membrane flange enabling the outlet to be simply inserted in to the overflow and welded to the PVC sheet membrane. All outlets come with an integrated leaf guard to prevent blockages of the outlets and minimise maintenance.

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

FATRA PDF DETAILS |

Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.

DESIGN CONSIDERATION |

Design considerations covering aspects of the project which must be considered.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

WARRANTIES |

Request a sample of the Fatra manufacturer backed warranty.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

INSPECTION FORM |

Fatra inspection form provides specific inspection process to be completed upon completion.
