| FULLY ADHERED BITUMEN REFURBISHMENT

SYSTEM | OVERVIEW

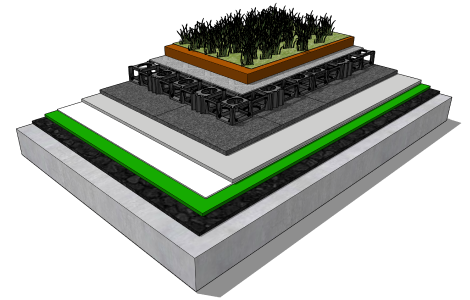

The Fatra fully adhered green roof system incorporates Fatrafol 807 PVC waterproofing system bonded directly to the existing failed membrane using the Fatrabond moisture curing adhesive with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect fully adhered green roof system.

The specifications for the different layers will depend on the clients objectives, requirements and project specific specifications. Fatra provide all components for green roof projects making it simple and convenient for our approved contractors.

The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.

FATRA ARMOUR | PROTECTION MAT

The Fatra Armour protection mat is installed directly over the PVC membrane to provide protection to the waterproofing system from any sharp edges and pertruding items which might be present in the green roof overlaying finishes

FATRAFOL 807 | FLEECE BACK PVC SHEET MEMBRANE

The Fatrafol 807 has a 300gsm fleece backing which enables the PVC membrane to be fully adhered directly over the existing failed membrane. The thicker fleece backing provides adequate protection to the PVC membrane to avoid impairing the performance of the Fatra membrane.

FATRABOND 1215 | MOISTURE CURING ADHESIVE

The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807 PVC membrane directly to the existing membrane. The Fatrabond adhesive is unaffected by the substrate moisture or inclement weather improving productivity and reducing overall installation programmes.

FATRAFOL 807 | FLEECE BACK PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURS
1.5mmW:1.65m | L: 16m M2 | 26.40Light Grey | Lead Grey
2.0mmW:1.65m | L: 13m M2 | 21.45Light Grey | Lead Grey

WARRANTY | PERIODS

Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane

Fatra offer an unrivalled manufacturers backed 30 year warranty* Contact Fatra for more information

DESIGN | CONSIDERATION

CONCRETE | CANCER

STRUCTURAL | CRACKING

INSUFFICIENT | FALLS

PENETRATION | LOCATIONS

INSUFFICIENT | DRAINAGE

COMPATIBLE | PRODUCTS

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

VARIOUS OVERLAYING FINISHES

APPLIED DIRECTLY OVER EXISTING MEMBRANE

HOT AIR FUSION WELDED

IDEAL FOR NOISE SENSATIVE PROJECTS

SUPERIOR AESTHETICS

FULLY ADHERED SYSTEM

SYSTEM | ACCESSORIES

RAINWATER | OUTLETS

The Fatra prefabricated rainwater outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the outlet and welded to the field sheet membrane. All outlets come with an adjustable leaf guard to prevent blockages of the outlets and minimise maintenance.

FATRAFIX | BAR

The Fatra Fix bar is an aluminium box section encapsulated in PVC membrane. The Fatrafix bar is hot air fusion welded to the Fatrafol PVC membrane system and enables clients to mechanically anchor items such as solar panels, mechanical plant, timber decking and other roof mountable units without physically penetrating the membrane.

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

FATRA PDF DETAILS |

Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.

DESIGN CONSIDERATION |

Design considerations covering aspects of the project which must be considered.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

WARRANTIES |

Request a sample of the Fatra manufacturer backed warranty.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

INSPECTION FORM |

Fatra inspection form provides specific inspection process to be completed upon completion.

FATRA | SERVICES

SITE SURVEYS |

Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.

SPECIFICATIONS |

Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.

SITE SPECIFIC DRAWINGS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

APPROVED INSTALLERS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

QUALITY INSPECTIONS |

Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.

SCHEDULED MAINTENANCE |

Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
