MECHANICALLY FIXED

LAP FASTENED COLD STORE PANEL

REFURBISHMENT

SYSTEM OVERVIEW

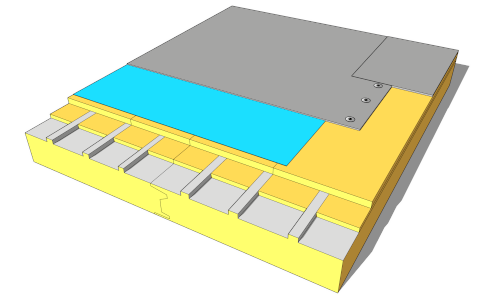

The Fatra lap fastened mechanically fixed insulated cold store roof panel refurbishment system provides a mechanically fixed waterproofing system which is lap fastened to provide the most cost effective single ply waterproofing solution available on the market. The Fatra ribbed profile roof panel system implements a layer of insulation between the profiles in the roof panel with an additional layer of insulation installed over the top to create a consistent flat surface for the Fatra PVC membrane system.

A full assessment by a Fatra Australia representative is require to assess the condition of the existing roof panel to establish what preparation maybe required such as rust repair, air sealing and other factors that will achieve the best possible performance. A structural assessment maybe required to be carried out by an approved and certified structural engineer to ensure the roof panel and structure are able to carry the additional weight of the Fatra system.

Unlike liquid applied membranes, the Fatrafol 810v is unaffected by substrate moisture and inclement weather conditions during installation which can cause the membrane to delaminate and defect prematurely. All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.

Insulated roof panels are constantly exposed to excessive structural movement, the Fatrafol PVC membrane has the ability to move with the roof panels without causing the membrane to shear and tear unlike liquid applied systems which fail along the joints of the roof panel causing water to be absorbed in the roof panel core and potentially the internal building envelope.

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

The Fatrafol 810v reinforced membrane is installed over the PIR insulation. The Fatrafol 810v is mechanically fixed used pressure plates and fixings along the longitudinal laps to suitably fix the Fatra system to the existing roof panel.

PIR | FOIL FACED INSULATION BOARD

The PIR insulation is installed between the rib profiles with a second layer installed above to create a flat surface. This is mechanically fixed using the approved fixings and pressure plates to secure the system to the roof panel in accordance with AS1170 Part 2.
