| MECHANICALLY FIXED LAP FASTENED COLD STORE PANEL REFURBISHMENT

SYSTEM | OVERVIEW

The Fatra mechanically fixed lap fastened insulated cold store roof panel refurbishment system provides a cost effective mechanically fixed waterproofing system that drastically reduces material and installation times compared to any other singly ply waterproofing system.

A full assessment by a Fatra Australia representative is require to assess the condition of the existing roof panel to establish what preparation maybe required such as rust repair, air sealing and other factors that will achieve the best possible performance. A structural assessment maybe required to be carried out by an approved and certified structural engineer to ensure the roof panel and structure are able to carry the additional weight of the Fatra system.

Unlike liquid applied membranes, the Fatrafol 810v is unaffected by substrate moisture and inclement weather conditions during installation which can cause the membrane to delaminate and defect prematurely. All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.

The Fatra mechanically fixed systems can be designed with multiple fixing patterns in accordance with AS1170 Part 2 to create a mechanically fixed system that improves the aesthetics and wind uplift performance of the Fatra PVC Membrane system. The Fatrafol 810v reinforcement provides superior shear and tear resistance ensuring the membrane is able withstand high amounts of wind uplift without damaging the PVC membrane system.

Insulated roof panels are constantly exposed to excessive structural movement, the Fatrafol PVC membrane has the ability to move with the roof panels without causing the membrane to shear and tear unlike liquid applied systems which fail along the joints of the roof panel causing water to be absorbed in the roof panel core and potentially the internal building envelope.

FATRAFOL 810v | REINFORCED PVC SHEET MEMBRANE

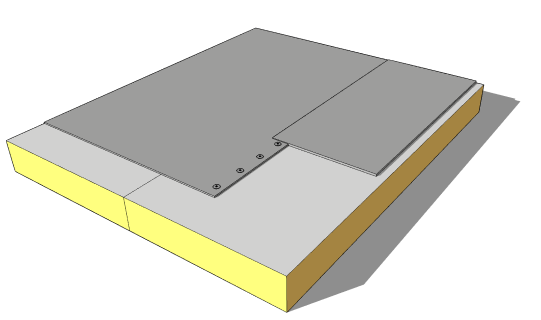

The Fatrafol 810v reinforced membrane is installed over the existing cold store roof panel and is fixed along the laps of the PVC membrane. The membrane system is secured into place using Fatra pressure plates and approved fixings which are fixed through the field sheet membrane along the laps and into the cold store roof panel to create a cost effective mechanically fixed cold store system. The Fatra mechanically fixed systems comes complete with a full wind load report outlining fixing patterns in accordance with AS1170 part 2.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURS
1.5mmW:2.05m | L: 20m M2 | 41Light Grey | Lead Grey
2.0mmW:2.05m | L: 15m M2 | 30Light Grey | Lead Grey

WARRANTY | PERIODS

Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane

Fatra offer an unrivalled manufacturers backed 30 year warranty for our Fatrafol 2.0mm PVC Membrane

DESIGN | CONSIDERATION

PANEL | DELAMINATION

STRUCTURAL | CAPACITY

PANEL | DEFLECTION

ROOF | SAFETY

CORE | SAMPLING

WIND | LOADING

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE

UNAFFECTED BY SUBSTRATE MOISTURE

WITHSTANDING STRUCTURAL MOVEMENT

HOT AIR FUSION WELDED

UNRIVALLED WIND UPLIFT CAPABILITY

DECREASED SYSTEM COSTS

SUPERIOR TENSILE STRENGTH

SYSTEM | ACCESSORIES

FATRAWALK | WALKWAY MEMBRANE

The FatraWalk PVC walkway membrane is a diamond embossed walkway membrane which is used to delineate walkways on the roof area. The FatraWalk membrane provides a clear pedestrian path and protects the primary waterproofing system from any damage that might occur when carrying out general maintenance to the roof area.

FATRAFIX | BAR

The Fatra Fix bar is an aluminium box section encapsulated in PVC membrane. The Fatrafix bar is hot air fusion welded to the Fatrafol PVC membrane system and enables clients to mechanically anchor items such as solar panels, mechanical plant, timber decking and other mountable units without physically penetrating the membrane.

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

FATRA PDF DETAILS |

Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.

DESIGN CONSIDERATION |

Design considerations covering aspects of the project which must be considered.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

WARRANTIES |

Request a sample of the Fatra manufacturer backed warranty.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

INSPECTION FORM |

Fatra inspection form provides specific inspection process to be completed upon completion.

FATRA | SERVICES

SITE SURVEYS |

Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.

SPECIFICATIONS |

Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.

SITE SPECIFIC DRAWINGS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

APPROVED INSTALLERS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

QUALITY INSPECTIONS |

Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.

SCHEDULED MAINTENANCE |

Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
