| FULLY ADHERED INSULATED BALCONY SYSTEM REFURBISHMENT

SYSTEM | OVERVIEW

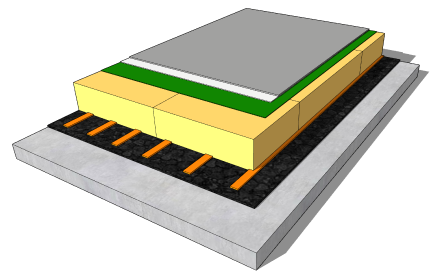

The Fatra fully adhered insulated balcony system is a completely none penetrating fully adhered insulated system. This system provides the client with the most thermally efficient insulated system due there being zero thermal bridges within the system and its components. Depending on the preparation process the exisiting membrane will be removed prior to installing the Fatra system. This system can potentially be installed directly over the existing failed membrane substantially reducing the overall project costs and risks associated with removing existing membranes.

As building standards evolve and change over time, many existing structures are likely to be insufficiently insulated or in some cases not insulated at all. By implementing a Fatra insulated system not only does it provide the client with a more comfortable living or working environment but can bring the building up to standard.

All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.

Implementing a tissue faced insulation board and the Fatrafol 807v fleece back membrane it minimises the number of fixings required to complete the system making it the perfect solution for live environment projects.

FATRAFOL 807v | FLEECE BACK PVC SHEET MEMBRANE

The Fatrafol 807v has a fleece backing which enables the PVC membrane to be fully adhered directly to the KoalaKool tissue faced insulation board using the Fatrabond 1215 moisture curing polyurethane adhesive.

KOALAKOOL Insulation | TISSUE FACED INSULATION BOARD

The KoalaKool by Fatra insulation is fully adhered over the existing failed membrane using Fatrabond 1210 insulation adhesive to bond the insulation into place.

FATRAVAP | SELF ADHERED VAPOUR CONTROL LAYER

The FatraVap self adhered vapour control layer is bonded to the substrate prior to installation of the insulation board.

FATRAFOL 807v | FLEECE BACK PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURS
1.5mmW:1.65m | L: 16m | M2| 26.40Light Grey | Lead Grey
2.0mmW:1.65m | L: 13m | M2| 21.45Light Grey | Lead Grey

WARRANTY | PERIODS

Fatra offer an unrivalled manufacturers backed 20 year warranty for our Fatrafol 1.5mm PVC Membrane

Fatra offer an unrivalled manufacturers backed 30 year warranty* Contact Fatra for more information.

DESIGN | CONSIDERATION

CONCRETE | CANCER

STRUCTURAL | CRACKING

INSUFFICIENT | FALLS

CAVITY | HEIGHTS

INSUFFICIENT | DRAINAGE

DOOR | THRESHOLD

OVERLAYING | FINISHES

PENETRATION | LOCATIONS

COMPATIBLE | PRODUCTS

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

SUPERIOR THERMAL EFFICIENCY

DIRECTLY APPLICATION OVER MEMBRANE

HOT AIR FUSION WELDED

IDEAL FOR NOISE SENSATIVE PROJECTS

SUPERIOR AESTHETICS

FULLY ADHERED SYSTEM

SYSTEM | ACCESSORIES

WALL | OUTLETS

The Fatra prefabricated wall outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the vertical wall outlet and welded to the PVC sheet membrane. All wall outlets come with an integrated leaf guard to prevent blockages of the outlets and minimise maintenance.

RAINWATER | OUTLETS

The Fatra prefabricated rainwater outlets have a PVC membrane flange enabling the outlet to be simply inserted in to the outlet and welded to the field sheet membrane. All outlets come with an adjustable leaf guard to prevent blockages of the outlets and minimise maintenance.

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

FATRA PDF DETAILS |

Click on the PDF icon to download Fatra PDF detailed section drawings for all associated system detailing.

DESIGN CONSIDERATION |

Design considerations covering aspects of the project which must be considered.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

WARRANTIES |

Request a sample of the Fatra manufacturer backed warranty.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

INSPECTION FORM |

Fatra inspection form provides specific inspection process to be completed upon completion.

FATRA | SERVICES

SITE SURVEYS |

Fatra provide pre-specification surveys to establish the most suitable Fatra system for each individual project.

SPECIFICATIONS |

Fatra offer an array of specification documentation to enable contractors to accurately tender the Fatra system.

SITE SPECIFIC DRAWINGS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

APPROVED INSTALLERS |

Fatra provide project specific detailing and section drawings to cover all aspects of remedial projects.

QUALITY INSPECTIONS |

Fatra attend site during and after the installation of the Fatra system ensuring that the system has been completed to ensure compliance has been met.

SCHEDULED MAINTENANCE |

Fatra offer a maintenance programme to ensure the Fatra system maximises its performance and life expectancy.

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
