| FULLY ADHERED UNINSULATED TIMBER GREEN ROOF SYSTEM

SYSTEM | OVERVIEW

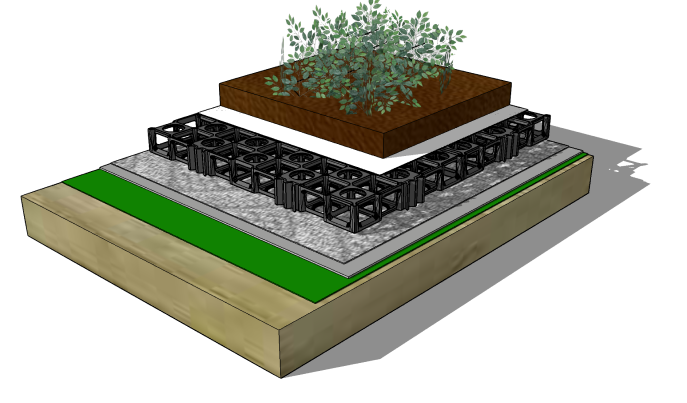

The Fatra fully adhered green roof system incorporates Fatrafol 807v PVC waterproofing system bonded directly to the substrate using the Fatrabond moisture curing adhesive with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect fully adhered green roof system.

The specifications for the different layers will depend on the clients objectives, requirements and project-specific specifications. Fatra provide all components for the green roof projects making it simple and convenient for our approved contractors.

The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.

GREEN ROOF | Overlaying Finishes

Fatra Armour protection mat is loose laid over the Fatrafol PVC Membrane to protect the membrane from the drainage cell. Installation of Fatra Drainage cell is then installed with a filter fabric applied above the drainage cell prior to the installation of the green roof build up.

FATRAFOL 807v | Fleece Back PVC Waterproofing Sheet Membrane

The Fatrafol 807v has a 120gsm fleece backing which enables the PVC membrane to be fully adhered directly to the substrate without any primers or extensive preparation.

FATRABOND 1215 | Moisture Curing Polyurethane Adhesive

The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807v PVC membrane directly to the substrate. The Fatrabond 1215 adhesive is unaffected by substrate moisture and inclement weather improving installation programme and productivity.

FATRAFOL 807v | FLEECE BACK PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURSWARRANTY
1.5mmW:1650mm | L: 16mLight Grey | Lead Grey20 Years
2mmW:1650mm | L: 13mLight Grey | Lead Grey30 Years

SYSTEM | ACCESSORIES

RAINWATER OUTLET | GUARD

Fatra green roof guards are used in conjunction with Fatra prefabricated rainwater outlets to prevent the vegetation layers blocking the rainwater outlets. The green roof guards come in various shapes and sizes depending on the outlet size, height and depth of the vegetation layer.

DRAINAGE | CELL

Fatra drainage cell is installed above the Fatra Armour protection mat and used in conjunction with the Fatra Filter Fabric which is installed above the drainage cell. The Fatra drainage cell comes in various thickness depending on project-specific criteria. The Fatra drainage cell has high compression strength, eliminates the requirement for gravel as a primary back fill material and is quick and easy to install.

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

FULLY ROOT RESISTANT TO FLL STANDARDS

FULLY BONDED SYSTEM

EXCELLENT TENSILE STRENGTH

UNAFFECTED BY SUBSTRATE MOISTURE

NON-PENETRATIVE SYSTEM

HOT AIR FUSION WELDED

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

CAD DETAILS |

Fatra DWG detailed section drawings for all associated system detailing.

FATRA PDF DETAILS |

Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

ADDITIONAL | INFORMATION

REQUEST A SAMPLE |

Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.

BOOK A PRESENTATION |

Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.

BOOK A DESIGN MEETING |

Why not let us do the work for you. Click on the design icon to book in a project-specific design consultation

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
