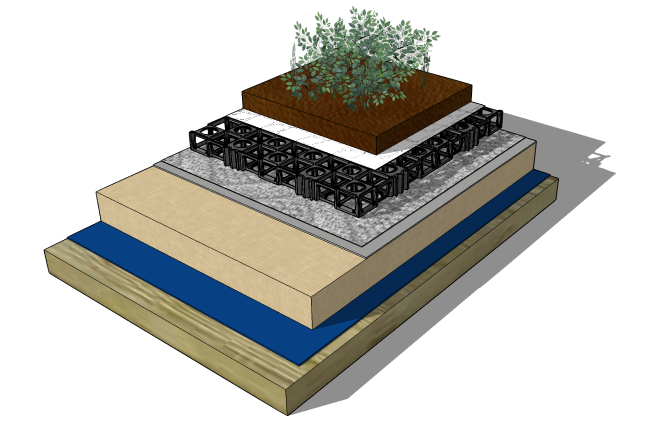

The Fatra insulated green roof system incorporates the KoalaKool insulation board below the Fatrafol PVC membrane waterproofing system with the Fatra Armour protection layer, Fatra drainage cell, filter fabric and vegetation layer to create the perfect green roof system.
The specifications for the different layers will depend on the clients objectives, requirements and project-specific specifications.
Fatra provide all components for green roof projects making it simple and convenient for our approved contractors.
The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.
Fatrafol membranes are 100% recyclable and can be made using up to 30% recycled materials making Fatra waterproofing membranes the most sustainable and environmentally friendly waterproofing membranes on the market today.
The KoalaKool insulation is installed over the FatraPar vapour control layer and is ballasted into place by the green roof system installed above
The Fatrafol 810v reinforced membrane is installed over the KoalaKool insulation board to protect the structure from water ingress and is ballasted into place by the green roof system.
Fatra Armour protection mat is loose laid over the Fatrafol PVC Membrane to protect the membrane from the drainage cell. Installation of Fatra Drainage cell is then installed with a filter fabric applied above the drainage cell prior to the installation of the green roof build up.
|1.5mm||W:2050mm | L: 20m||Light Grey | Lead Grey||20 Years|
|2mm||W:2050mm | L: 15m||Light Grey | Lead Grey||30 Years|
Fatra green roof guards are used in conjunction with Fatra prefabricated rainwater outlets to prevent the vegetation layers blocking the rainwater outlets. The green roof guards come in various shapes and sizes depending on the outlet size, height and depth of the vegetation layer.
Fatra drainage cell is installed above the Fatra Armour protection mat and used in conjunction with the Fatra Filter Fabric which is installed above the drainage cell. The Fatra drainage cell comes in various thickness depending on project-specific criteria. The Fatra drainage cell has high compression strength, eliminates the requirement for gravel as a primary back fill material and is quick and easy to install.
Fatra specification word template to simply insert into your project documentation.
Fatra DWG detailed section drawings for all associated system detailing.
Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.
Fatra installation guide provides a step by step guide on how the system comes together
All the technical data and MSDS documentation for all associated components.
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
3D technical specification with full technical methodology of the system.
All Fatra certification, accreditations and test results for the Fatra system.
Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.
Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.
Quality Management for design and manufacturing
Accreditation for physical performance and fire resistance
Effective Environmental Management System for manufacturing
Conforms with health, safety and environmental protection standards
Accreditation of performance and resistance for multiple elements.
Received A+ rating for environmentally friendly products.
Fatra Australia understand the importance of managing the quality of our systems. Fatra attend site at regular intervals to carry out quality inspections.
Fatra provide support at the design stage of our clients projects to ensure the most efficient waterproofing system is tailored to our clients requirements and site specific project objectives.
We work continuously on training and developing the knowledge of Fatra systems with all of our clients- from approved and certified installers through to the architects and consultants.
