BALLASTED INSULATED

STRUCTURAL STEEL GREEN ROOF SYSTEM

SYSTEM OVERVIEW

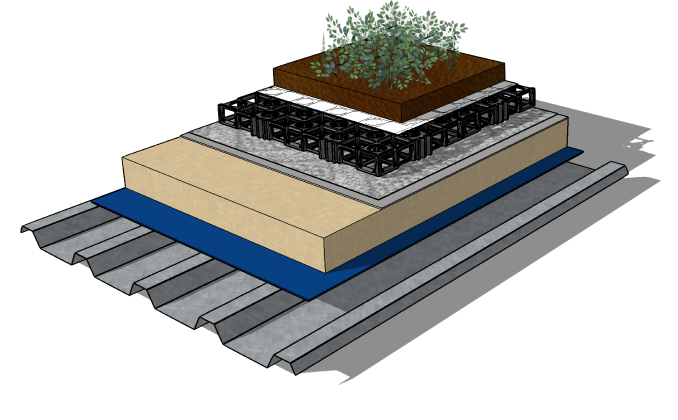

The Fatra insulated steel deck green roof system incorporates the structural steel Fatra Speed Deck as the substrate with the PIR insulation board and the Fatrafol 810v PVC waterproofing system above to create the waterproofing system. This system also includes the Fatra Armour protection mat, Fatra drainage cell, filter fabric and vegetation layer to create the perfect green roof solution for structural steel envelopes.

The specifications for the different layers will depend on the clients objectives, requirements and project-specific specifications. Fatra provide all components for the steel deck green roof projects making it simple and convenient for our approved applicators.

The Fatrafol PVC membranes are tested to FLL standards and are proven to withstand root penetration from the most aggressive roots such as birch and oak trees. No additional protection layers or root resistant coatings are required unlike traditional bitumen and liquid membranes.

With the Fatrafol membranes 100% recyclable at the end of its service life it can be made using up to 30% recycled materials, Fatrafol PVC membrane are the most sustainable and environmentally friendly waterproofing membranes on the market today.

GREEN ROOF | Overlaying Finishes

Fatra Armour protection mat is loose laid over the Fatrafol PVC Membrane to protect the membrane from the drainage cell. Installation of Fatra Drainage cell is then installed with a filter fabric applied above the drainage cell prior to the installation of the green roof build up.

FATRAFOL 810v | Reinforced PVC Waterproofing Sheet Membrane

The Fatrafol 810v reinforced membrane is installed over the PIR insulation board to protect the structure from water ingress and is ballasted into place by the green roof system.

PIR | Insulation Board

The PIR insulation is installed over the FatraPar vapour control layer and is ballasted into place by the green roof system installed above
