| MECHANICALLY FIXED TAPERED INSULATED ROOF SYSTEM

SYSTEM | OVERVIEW

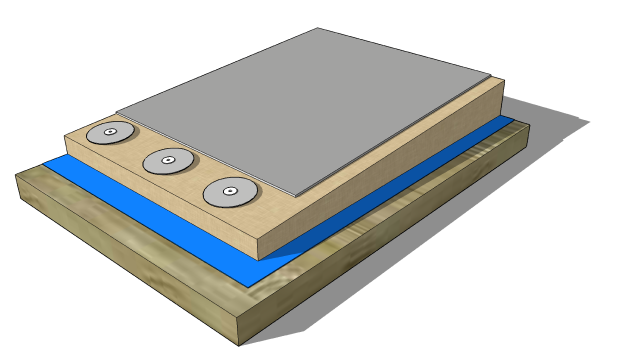

Fatra mechanically fixed tapered insulated system consists of the Fatrapar vapour control layer laid directly over the substrate and is sealed along all joints and laps to prevent any condensation ingress. The project specific designed tapered insulation board is then mechanically fixed to the structure using the Fatra engineered FatraPad system. Once the insulation is fixed into place the Fatrafol 810v PVC membrane is then attached to the fixing system using the FatraPad adhesive creating a none penetrative mechanically tapered insulated roof system.

The Fatra tapered systems creates the fall within the structure with a 99% degree of accuracy. The tapered systems are specifically designed by Fatra for each individual project to accurately drain rainwater to the outlets whilst providing superior thermal performance.

The Fatra tapered insulated systems can be designed and manufactured to create any degree of fall in any direction drastically reducing materials and labour costs compared to creating a fall within a concrete slab.

FATRAFOL 810v | Reinforced PVC Waterproofing Sheet Membrane

The Fatrafol 810v PVC membrane is a reinforced PVC Membrane enabling the membrane to be mechanically fixed using the Fatra engineered pad system.

KOALAKOOL | Tapered Insulation Board

The KoalaKool tapered insulation board is manufactured to site specific requirements which creates the desired falls in the insulation whilst providing thermal protection and reducing installation and material costs. The KoalaKool insulation is installed over the vapour control layer and is mechanically fixed using the Fatra engineered Pad System.

FATRAPAR | Vapour Control Layer

The Fatrapar vapour control layer is laid over the substrate and is sealed along all laps, joints, penetrations and upturns using double sided butyl tape to prevent moisture ingress.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURSWARRANTY
1.5mmW:2050mm | L: 20mLight Grey | Lead Grey20 Years
2mmW:2050mm | L: 15mLight Grey | Lead Grey30 Years

TAPERED INSULATION | IN-DEPTH

SYSTEM | BENEFITS

Fatra tapered insulated roof systems offer superior design flexibility which can be catered for all project-specific objectives whether that’s creating a central ridge falling to perimeter box gutters, centralised rainwater outlets or falling from verges into valleys to the eaves gutter anything is possible! Fatra tapered insulated systems provide an array of benefits such as:-
  • Up to 1200% overall reduced system weight compared to screed to falls system
  • Drastically reduced programme times vs pouring a concrete slab to falls
  • Machine manufactured boards creating 99% accurate falls to drainage points
  • Superior thermal efficiency due to minimising thermal bridges
  • Reduced labour and material installation costs vs traditional cold roof systems
  • Can be used on new build and remedial projects
  • Design flexibility to achieve specific R-Value
  • Fully designed and engineered to Australian Standards

DESIGN | SERVICES

Fatra understand the importance of designing a system that is not only efficient in its performance but efficient in its design to provide the most sustainable solution. That is why Fatra provide a comprehensive support service from the design stage through to the installation of our systems. Fatra provide as standard to all our clients:-
  • Project specific design consultations to understand every project objective
  • Comprehensive design support and project-specific specifications
  • Project specific tapered insulation plans
  • Project specific wind load calculation reports
  • Approved, trained and certified Fatra contractors
  • Comprehensive onsite inspection procedures

DESIGN | EXAMPLES

SYSTEM | ADVANTAGES

SUPERIOR WIND UPLIFT CAPABILITIES

INCREASED THERMAL PERFORMANCE

REDUCED THERMAL BRIDGING

DECREASED INSTALATION & MATERIAL COSTS

UNRIVALLED FIRE PERFORMANCE

CREATE FALLS WITHIN INSULATION IN ANY DIRECTION

NON-PENETRATIVE SYSTEM

HOT AIR FUSION WELDED

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

CAD DETAILS |

Fatra DWG detailed section drawings for all associated system detailing.

FATRA PDF DETAILS |

Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

ADDITIONAL | INFORMATION

REQUEST A SAMPLE |

Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.

BOOK A PRESENTATION |

Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.

BOOK A DESIGN MEETING |

Why not let us do the work for you. Click on the design icon to book in a project-specific design consultation

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
