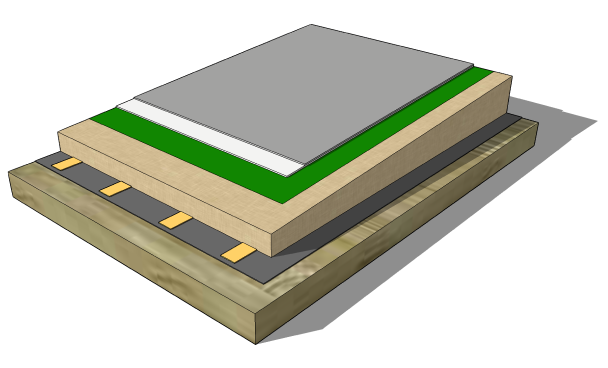

Fatra tapered insulated system consists of the FatraVap self adhered vapour control layer bonded directly to the substrate to prevent any condensation ingress. The project specific designed tapered insulation board is then fully bonded directly to the FatraVap using the Fatrabond insulation adhesive. Once the insulation is bonded into place the Fatrafol 807v PVC membrane is then fully adhered to the tissue faced tapered insulation board using the Fatrabond 1215 moisture curing polyurethane adhesive to create a fully adhered tapered insulated roof system.
The Fatra tapered systems creates the fall within the structure with a 99% degree of accuracy. The tapered systems are specifically designed by Fatra for each individual project to accurately drain rainwater to the outlets whilst providing superior thermal performance.
The Fatra tapered insulated systems can be designed and manufactured to create any degree of fall in any direction drastically reducing materials and labour costs compared to creating a fall within a concrete slab.
The Fatrafol 807v has a 120gsm fleece backing which enables the PVC membrane to be fully adhered to the insulation board using the Fatrabond 1215 moisture curing polyurethane adhesive.
The KoalaKool tapered insulation board is manufactured to site specific requirements which creates the desired falls in the insulation whilst providing thermal protection and reducing installation and material costs. KoalaKool insulation is installed over the vapour control layer and is completely fully adhered.
The FatraVap vapour control layer is a self adhered vapour barrier which is fully bonded directly to the substrate to protect the structure from condensation.
|1.5mm||W:1650mm | L: 16m||Light Grey | Lead Grey||20 Years|
|2mm||W:1650mm | L: 13m||Light Grey | Lead Grey||30 Years|
Fatra specification word template to simply insert into your project documentation.
Fatra DWG detailed section drawings for all associated system detailing.
Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.
Fatra installation guide provides a step by step guide on how the system comes together
All the technical data and MSDS documentation for all associated components.
Fatra maintenance manual provides guidance on how to maintain the Fatra system.
3D technical specification with full technical methodology of the system.
All Fatra certification, accreditations and test results for the Fatra system.
Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.
Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.
Quality Management for design and manufacturing
Accreditation for physical performance and fire resistance
Effective Environmental Management System for manufacturing
Conforms with health, safety and environmental protection standards
Accreditation of performance and resistance for multiple elements.
Received A+ rating for environmentally friendly products.
Fatra Australia understand the importance of managing the quality of our systems. Fatra attend site at regular intervals to carry out quality inspections.
Fatra provide support at the design stage of our clients projects to ensure the most efficient waterproofing system is tailored to our clients requirements and site specific project objectives.
We work continuously on training and developing the knowledge of Fatra systems with all of our clients- from approved and certified installers through to the architects and consultants.
