MECHANICALLY FIXED TAPERED

INSULATED ROOF SYSTEM

SYSTEM OVERVIEW

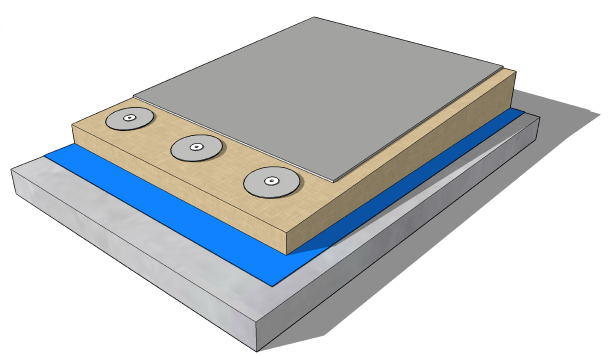

Fatra mechanically fixed tapered insulated system consists of the Fatrapar vapour control layer laid directly over the substrate and is sealed along all joints and laps to prevent any condensation ingress. The project specific designed tapered insulation board is then mechanically fixed to the structure using the Fatra engineered FatraPad system. Once the insulation is fixed into place the Fatrafol 810v PVC membrane is then attached to the fixing system using the FatraPad adhesive creating a none penetrative mechanically tapered insulated roof system.

The Fatra tapered systems creates the fall within the structure with a 99% degree of accuracy. The tapered systems are specifically designed by Fatra for each individual project to accurately drain rainwater to the outlets whilst providing superior thermal performance.

The Fatra tapered insulated systems can be designed and manufactured to create any degree of fall in any direction drastically reducing materials and labour costs compared to creating a fall within a concrete slab.

FATRAFOL 810v | Reinforced PVC Waterproofing Sheet Membrane

The Fatrafol 810v PVC membrane is a reinforced PVC Membrane enabling the membrane to be mechanically fixed using the Fatra engineered pad system.

PIR | Tapered Insulation Board

The PIR tapered insulation board is manufactured to site specific requirements which creates the desired falls in the insulation whilst providing thermal protection and reducing installation and material costs. The PIR insulation is installed over the vapour control layer and is mechanically fixed using the Fatra engineered Pad System.

FATRAPAR | Vapour Control Layer

The Fatrapar vapour control layer is laid over the substrate and is sealed along all laps, joints, penetrations and upturns using double sided butyl tape to prevent moisture ingress.
