| MECHANICALLY FIXED LAP FASTENED COLD STORE PANEL SYSTEM

SYSTEM | OVERVIEW

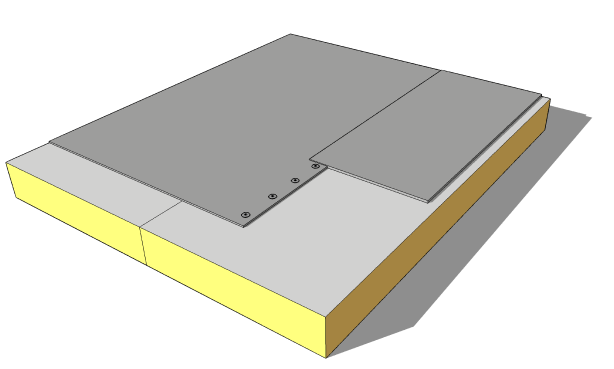

The Fatra mechanically fixed lap fastened cold store roof panel system provides a cost effective method of waterproofing a cold store roof panel.

Unlike liquid membranes, the Fatrafol 810v is unaffected by substrate moisture and inclement weather conditions during installation which can cause the membrane to delaminate & defect prematurely. All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.

The mechanically fixed lap fastened system reduces overall installation and programming times as well as reduced material costs resulting in one of the most cost effective PVC Membrane waterproofing systems available. The Fatrafol 810v reinforcement provides superior shear and tear resistance ensuring the membrane is able to withstand high amounts of wind uplift without damaging the membrane system.

Insulated roof panels are constantly exposed to excessive structural movement, the Fatrafol PVC membrane has the ability to move with the roof panels without causing the membrane to shear and tear unlike liquid applied systems which fail along the joints of the roof panel causing water to be absorbed in the roof panel core and potentially the internal building envelope.

FATRAFOL 810v | Reinforced PVC Waterproofing Membrane

The Fatrafol 810v polyester reinforced membrane is a reinforced PVC Membrane enabling the membrane to be lap fastened using Fatra pressure plates and fixings.

LAP FASTENED | Fixing system

The membrane system is secured into place using Fatra pressure plates and approved fixings which are fixed through the field sheet membrane along the laps and into the cold store roof panel to create a cost effective mechanically fixed cold store system.

FATRAFOL 810v | REINFORCED PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURSWARRANTY
1.5mmW:2050mm | L: 20mLight Grey | Lead Grey20 Years
2mmW:2050mm | L: 15mLight Grey | Lead Grey30 Years

SYSTEM | ACCESSORIES

FATRAFIX | BAR

Fatra offer a unique ancillary which enables the client to mechanically anchor items such as solar panels, air conditioning units and timber decking to the structure without having to penetrate the waterproofing membrane which creates extensive detailing and weak points within the waterproofing system. The Fatrafix Bar is an aluminium bar which is encapsulated in PVC membrane and is simply welded to the field sheet membrane.

FATRAWALK | WALKWAY MEMBRANE

The FatraWalk PVC walkway membrane is a diamond embossed walkway membrane which is used to delineate walkways on the roof area. The FatraWalk membrane provides a clear pedestrian path and protects the primary waterproofing system from any damage that might occur when carrying out general maintenance to the roof area.

SYSTEM | ADVANTAGES

SUPERIOR WIND UPLIFT CAPABILITIES

CONSISTENT SHEET MEMBRANE THICKNESS

UNAFFECTED BY STRUCTURAL MOVEMENT

EXCELLENT TENSILE STRENGTH

UNRIVALLED FIRE PERFORMANCE

DECREASED INSTALLATION & MATERIAL COST

HOT AIR FUSION WELDED
