| FULLY ADHERED COLD STORE PANEL SYSTEM

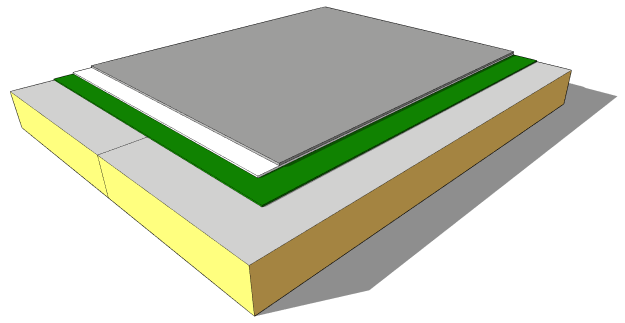

SYSTEM | OVERVIEW

The Fatra cold store insulated roof panel system provides a fully adhered system which is bonded directly to a steel lined roof panel using the Fatrabond moisture curing polyurethane adhesive. Unlike liquid applied membranes, the Fatrafol 807v is unaffected by substrate moisture and inclement weather conditions during installation which can cause the membrane to delaminate & defect prematurely. All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.

The fully adhered system improves drainage, the overall aesthetics of the roof system due to not being exposed to a certain amount of wind flutter and also reduces disruption to the client. Insulated roof panels are constantly exposed to excessive structural movement, the Fatrafol PVC membrane has the ability to move with the roof panels without causing the membrane to shear and tear unlike liquid applied systems which fail along the joints of the roof panel causing water to be absorbed in the roof panel core and potentially the internal building envelope.

FATRAFOL 807v | Fleece Back PVC Waterproofing Sheet Membrane

The Fatrafol 807v has a 120gsm fleece backing which enables the PVC membrane to be fully adhered directly to the substrate without any primers or extensive preparation.

FATRABOND 1215 | Moisture Curing Polyurethane Adhesive

The Fatrabond 1215 moisture curing polyurethane adhesive is used to bond the Fatrafol 807v PVC membrane directly to the substrate. The Fatrabond 1215 adhesive is unaffected by substrate moisture or inclement weather improving productivity and reducing overall installation programme.

FATRAFOL 807v | FLEECEBACK PVC MEMBRANE

THICKNESSDIMENSIONSCOLOURSWARRANTY
1.5mmW:1650mm | L: 16mLight Grey | Lead Grey20 Years
2mmW:1650mm | L: 13mLight Grey | Lead Grey30 Years

SYSTEM | ACCESSORIES

FATRAFIX | BAR

Fatra offer a unique ancillary which enables the client to mechanically anchor items such as solar panels, air conditioning units and timber decking to the structure without having to penetrate the waterproofing membrane which creates extensive detailing and weak points within the waterproofing system. The Fatrafix Bar is an aluminium bar which is encapsulated in PVC membrane and is simply welded to the field sheet membrane.

FATRAWALK | WALKWAY MEMBRANE

The FatraWalk PVC walkway membrane is a diamond embossed walkway membrane which is used to delineate walkways on the roof area. The FatraWalk membrane provides a clear pedestrian path and protects the primary waterproofing system from any damage that might occur when carrying out general maintenance to the roof area.

SYSTEM | ADVANTAGES

CONSISTENT SHEET MEMBRANE THICKNESS

UNAFFECTED BY STRUCTURAL MOVEMENT

FULLY BONDED SYSTEM

EXCELLENT TENSILE STRENGTH

UNAFFECTED BY SUBSTRATE MOISTURE

SUPERIOR AESTHETICS

HOT AIR FUSION WELDED

DOWNLOADS | CLICK THE ICONS TO DOWNLOAD

GET ALL FILES IN EMAIL

WORD SPECIFICATION |

Fatra specification word template to simply insert into your project documentation.

CAD DETAILS |

Fatra DWG detailed section drawings for all associated system detailing.

FATRA PDF DETAILS |

Click on the PDF icon to download the Fatra PDF detailed section drawings for all associated system detailing.

INSTALL GUIDE |

Fatra installation guide provides a step by step guide on how the system comes together

TECHNICAL DATA SHEETS |

All the technical data and MSDS documentation for all associated components.

MAINTENANCE MANUAL |

Fatra maintenance manual provides guidance on how to maintain the Fatra system.

3D TECH SPECS |

3D technical specification with full technical methodology of the system.

CERTIFICATION |

All Fatra certification, accreditations and test results for the Fatra system.

ADDITIONAL | INFORMATION

REQUEST A SAMPLE |

Like what you see? Click on the sample icon to request a sample of the Fatrafol PVC membranes.

BOOK A PRESENTATION |

Want to know more about Fatra systems or would like to book a CPD? Click on the presentation icon to book a Fatra presentation.

BOOK A DESIGN MEETING |

Why not let us do the work for you. Click on the design icon to book in a project-specific design consultation

SYSTEM | CERTIFICATION

ISO9001 |

Quality Management for design and manufacturing

FM APPROVALS |

Accreditation for physical performance and fire resistance

ISO14001 |

Effective Environmental Management System for manufacturing

CE |

Conforms with health, safety and environmental protection standards

BBA |

Accreditation of performance and resistance for multiple elements.

BREEAM |

Received A+ rating for environmentally friendly products.
