Clyde - Sydney - NSW

Sydney Trains Engineering & Maintenance Hub

The award winning Sydney Trains Engineering & Maintenance Hub didn't cut corners with protecting their valuable assets. The client assessed the Fatra cool roof system vs a traditional bitumen membrane ballasted system and made the easy decision to move forward with this uniquely engineered system by Fatra.

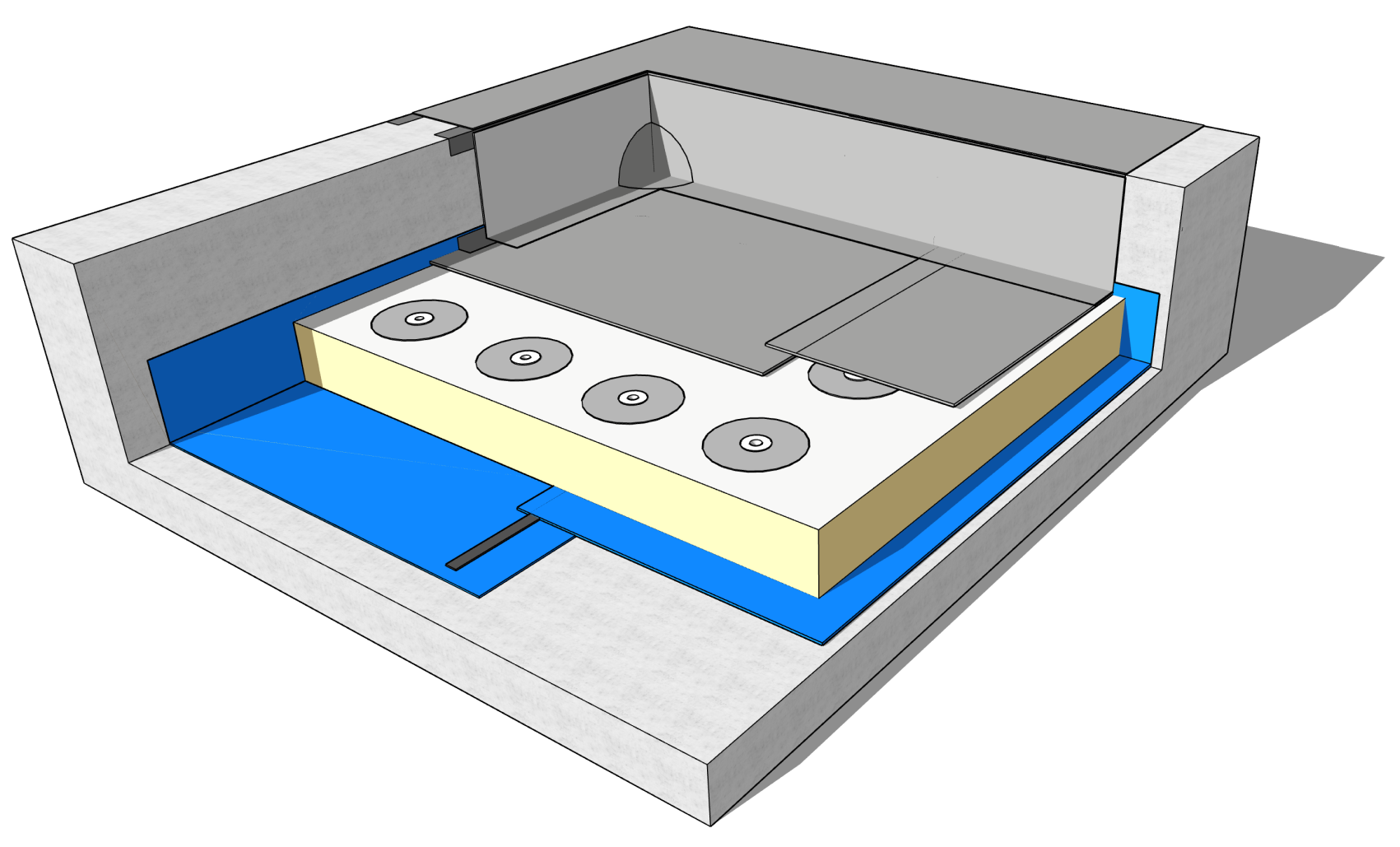

Implementing our FatraPar vapour control layer sealed with Fatra butyl tape with a 70mm PIR insulation board mechanically fixed using telescopic tubes and fixings to reduce thermal bridging through the fixings and our Fatrafol 810v nylon reinforced PVC membrane over the insulation. This system not only removes the requirement for a ballast but also offers excellent thermally efficiency, reduced structural loading, fast & efficient testing capabilities and superior waterproofing performance.

The Fatra mechanically fixed system is engineered to AS/NZS 1170-2 (2011) - structural design actions - Part 2: Wind Actions as well as FM approved, BBA certified and ISO 9001 & 14001 certified making it the most tested and certified membrane system available in Australia.

Project Stats

Total Area

Method of Application
Mechanically Fixed - Cool Roof

Fatrafol 810v

Area of Application

New Build - Commercial

9 weeks


Superior Leak Detection Testing

Excellent Thermal Efficiancy

Reduced Structural Loading
