Sydney - CBD - NSW

No. 2 Martin Place

The iconic No2 Martin Place in the heart of Sydney CBD was in need of the waterproofing membrane system to be refurbished due to the existing bitumen membrane failing. A building with such amazing heritage and history deserved a premium waterproofing system which is what it received.

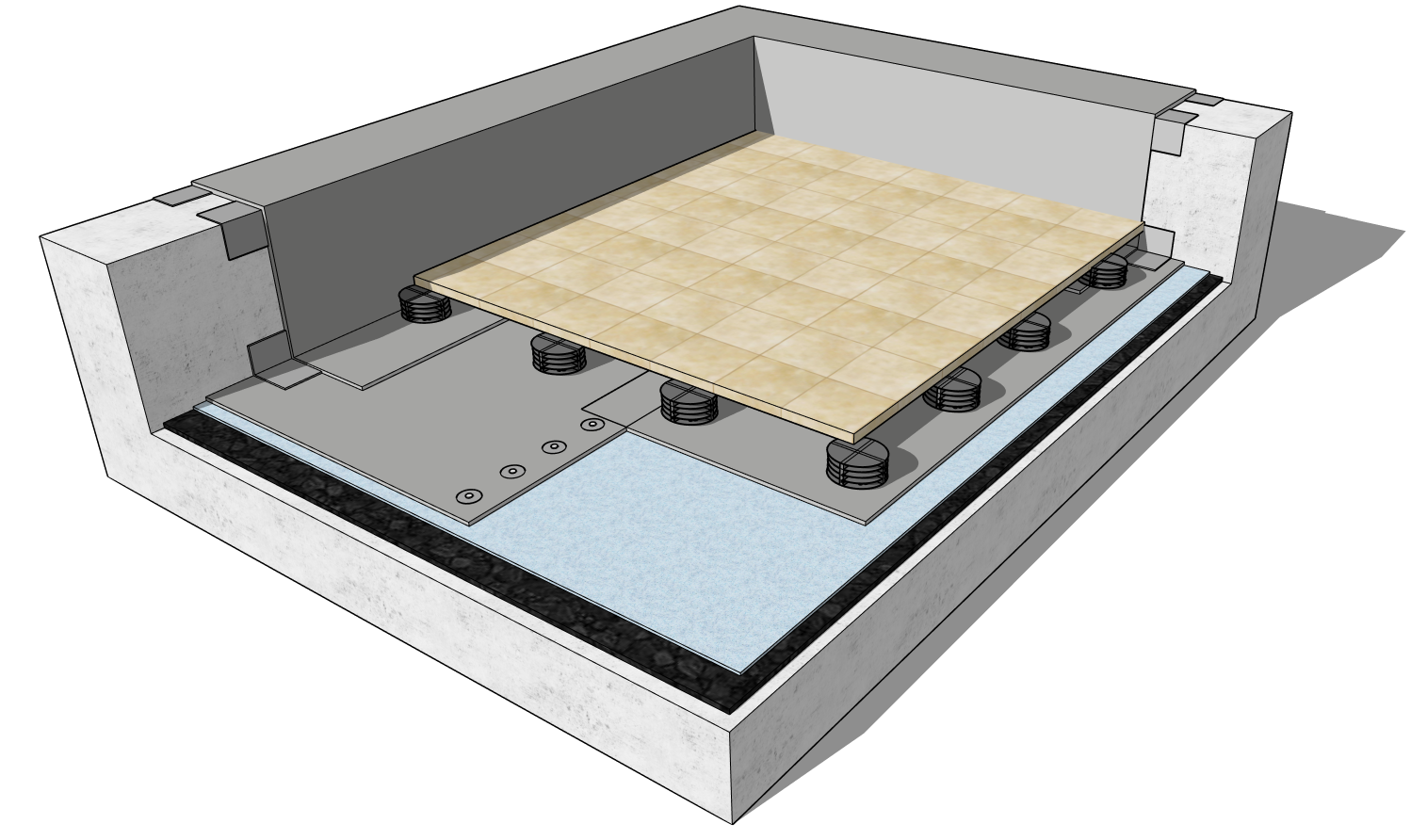

Our Fatrafol 810v nylon reinforced PVC membrane was mechanically fixed over the existing failed bitumen membrane with 300gsm geotextile fabric separation layer installed to protect the PVC membrane.

The project had a number of obstacles to over come to ensure the PVC membrane could perform to the highest standard. Fatra worked onsite with our approved applicator to overcome the tricky obstacles to ensure the specification was adhered to and the waterproofing system was installed to the highest standard.

Once complete the client wanted to use the area for communal and event purposes so a paver system was installed over the PVC membrane to protect the membrane from damage whilst extending the life expectancy of the PVC membrane itself.

Project Stats

Total Area

Method of Application
Mechanically Fixed

Fatrafol 810v

Area of Application

Remedial - Residential

4 weeks


Noise Sensitive System

Bitumen Refurbishment System

Existing Membrane Removal Elimination
