FULLY ADHERED INSULATED

CONCRETE BALCONY SYSTEM

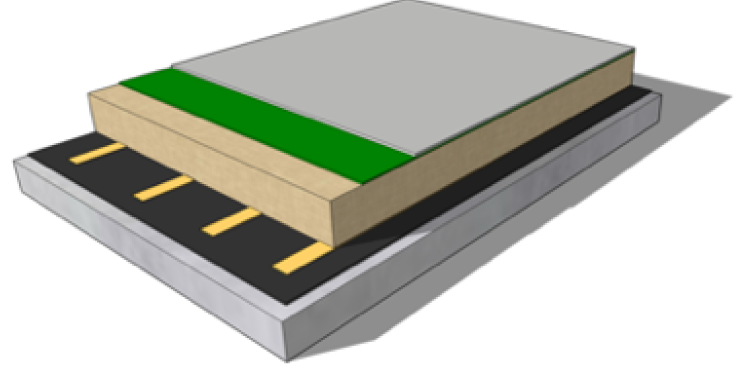

SYSTEM OVERVIEW

The Fatra fully adhered insulated balcony system is a non-penetrative bonded insulated system. This system provides superior aesthetics with zero thermal bridges due to not requiring any fixings as it is fully bonded to the structure. The Fatra fully adhered insulated balcony system can reduce air conditioning costs by up to 25% per annum and improve the overall thermal rating by up to 20% due to minimising the amount of thermal bridges compared to installing the insulation to the underside of the substrate. All joints, laps and terminations are hot air fusion welded creating a permanent and physical bond and does not rely on adhesives sealants or tapes to create a waterproofed joint.

The Fatra fully adhered insulated balcony system implements the FatraVap self adhered vapour control layer, tissue faced insulation and the Fatrafol 807v fleece back membrane. This drastically reduces the number of fixings required to complete the system making it the perfect solution for noise sensitive environments.

Due to the system not requiring fixings to secure the system into place, the fully adhered insulated system can reduce install times onsite and labour install costs. The fully adhered insulated system also gives the client the opportunity to improve the overall thermal value of the building.

FATRAFOL 807v | Fleece Back PVC Waterproofing Sheet Membrane

The Fatrafol 807v fleece back membrane is fully adhered directly to the PIR tissue faced insulation board with the Fatrabond 1215 moisture curing polyurethane adhesive.

PIR | Insulation Board

The PIR insulation is installed over the vapour control and is fully adhered using Fatrabond 1210 moisture curing polyurethane adhesive

FATRAVAP | Self Adhered Vapour Control Layer

The FatraVap self adhered vapour control layer is bonded to the substrate prior to installation of the insulation board.

DOWNLOADS

GET ALL FILES IN EMAIL

WORD SPEC
Specification word template to simply insert into your project documentation.
Insert into project docs
Tailor to requirements
CAD DETAILS
DWG detailed section drawings for all associated system detailing.
Tailor to requirements
Branding capability
2D DRAWINGS
Cross section drawings for all associated system detailing.
Precise system detailing
Compact design
INSTALL GUIDE
Provides a step by step guide on how the system comes together
3d steps guide
Compact design
TECH DATA SHEETS
All the technical data & MSDS documentation.
System specific TDS
TDS for every component
MAINTENANCE
Provides full guidance on how to maintain the Fatra system.
Maximise system life span
Includes maintenance log
3D TECH SPEC
3D images with full methodology of the system.
3D installation manual
Customise to any project
CERTIFICATION
All certification, accreditations & test results for the Fatra system.
Performance transparency
System specific
